"Z" Louver Panel & Fiberglass Louvers

NAME - Door Louver Panel

COMPONENT - Internal Frame & External Louver

MATERIAL - Galvanized Steel Plate

Online message
Products detail

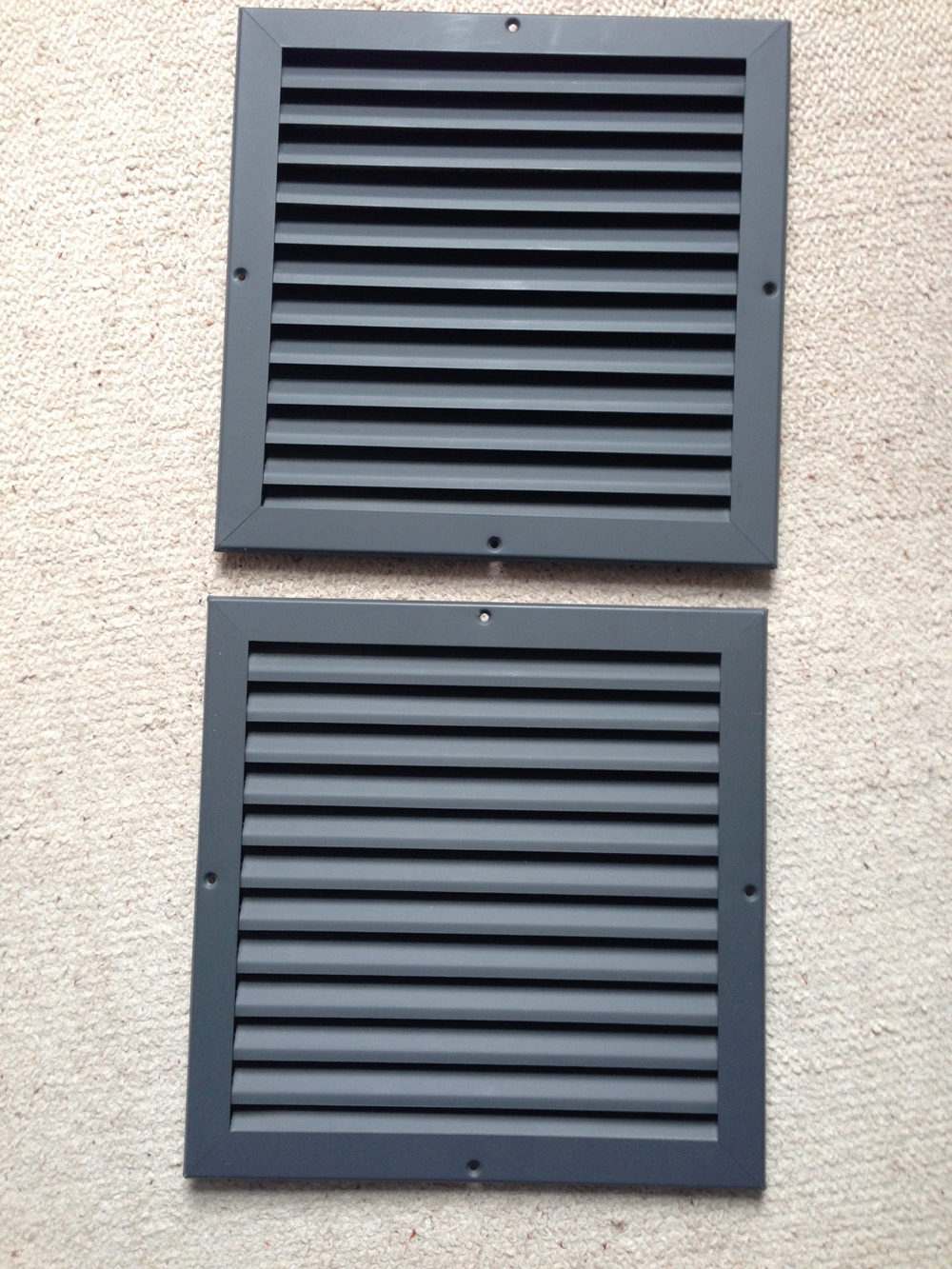

Name   -  Steel "Z" Louver Panel

Component   -   1 Pair of Louvers

Specification:

              Material   -  Galvanized Steel Plate

               Frame Guage   -  1.2mm thick

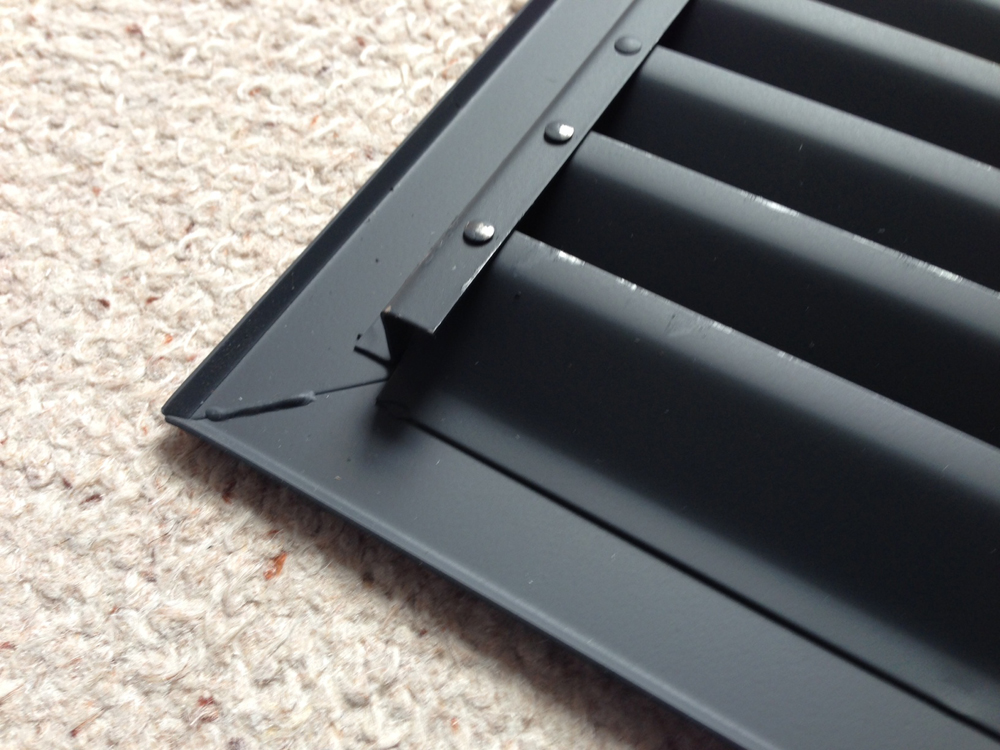

               Blade Guage   -  0.75mm thick, Shape Z

               Primary Finish   -  Powder Coating

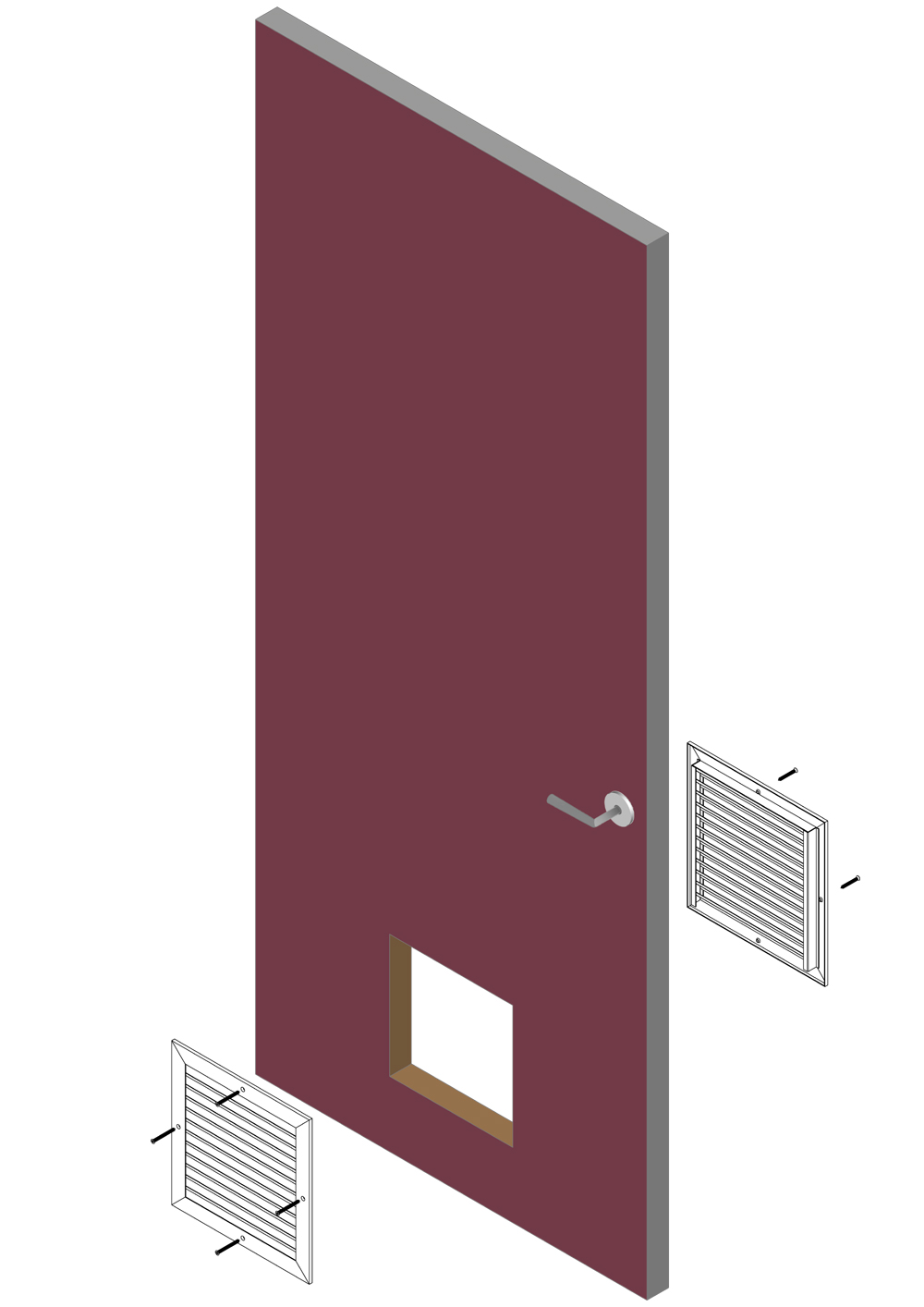

               Installation - Screw Onto Door





Model

Louver Panel Overall

Door Aperture Cutout

( Size A x B )

Door Leaf THK

(Size C)

 Drawing
LV - Z305 x 305
 349 x 349 mm
 305 x 305 mm
 ≥ 35mm
 Download
LV - Z457 x 457
 501 x 501 mm
 457 x 457 mm
 ≥ 35mm Download
LV - Z587 x 587
 631 x 631 mm
 587 x 587 mm
 ≥ 35mm Download






Size A: Door Aperture Cutout WIDTH




Size B: Door Aperture Cutout HEIGHT

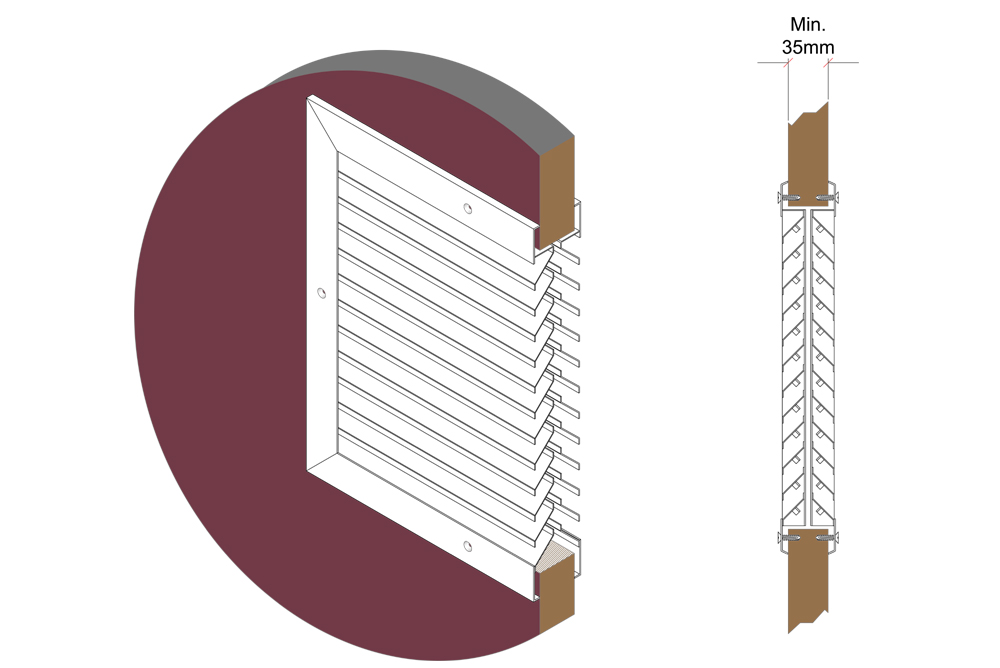

Size C: Door Leaf THICKNESS


VARY Primer Surface &  COLOR OPTIONS
