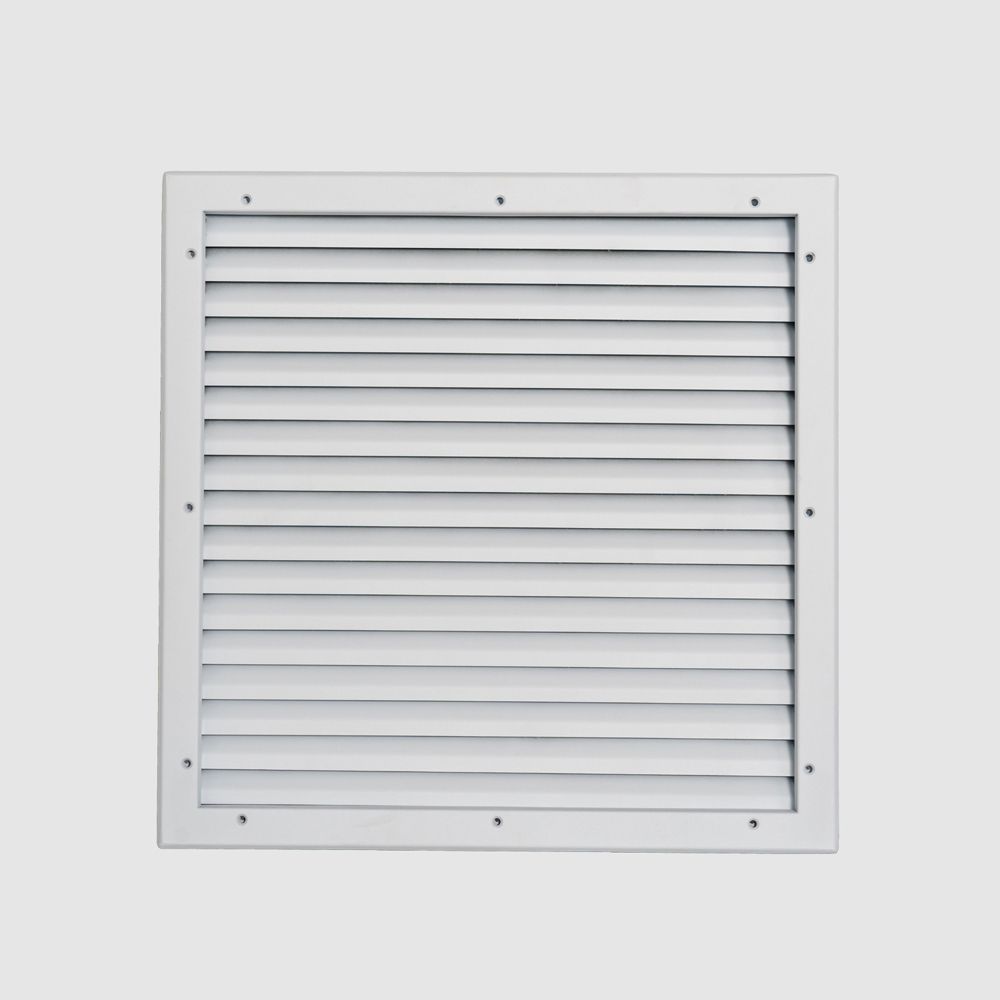

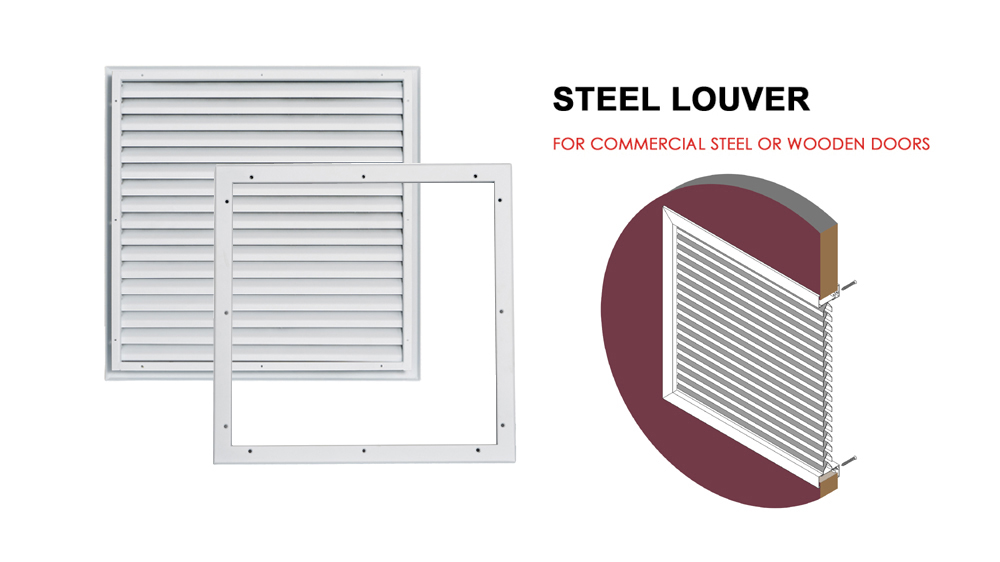

Steel Louver Panel LV610x610 & Door Cutout 610*610mm

   NAME  -  Door Louver Panel

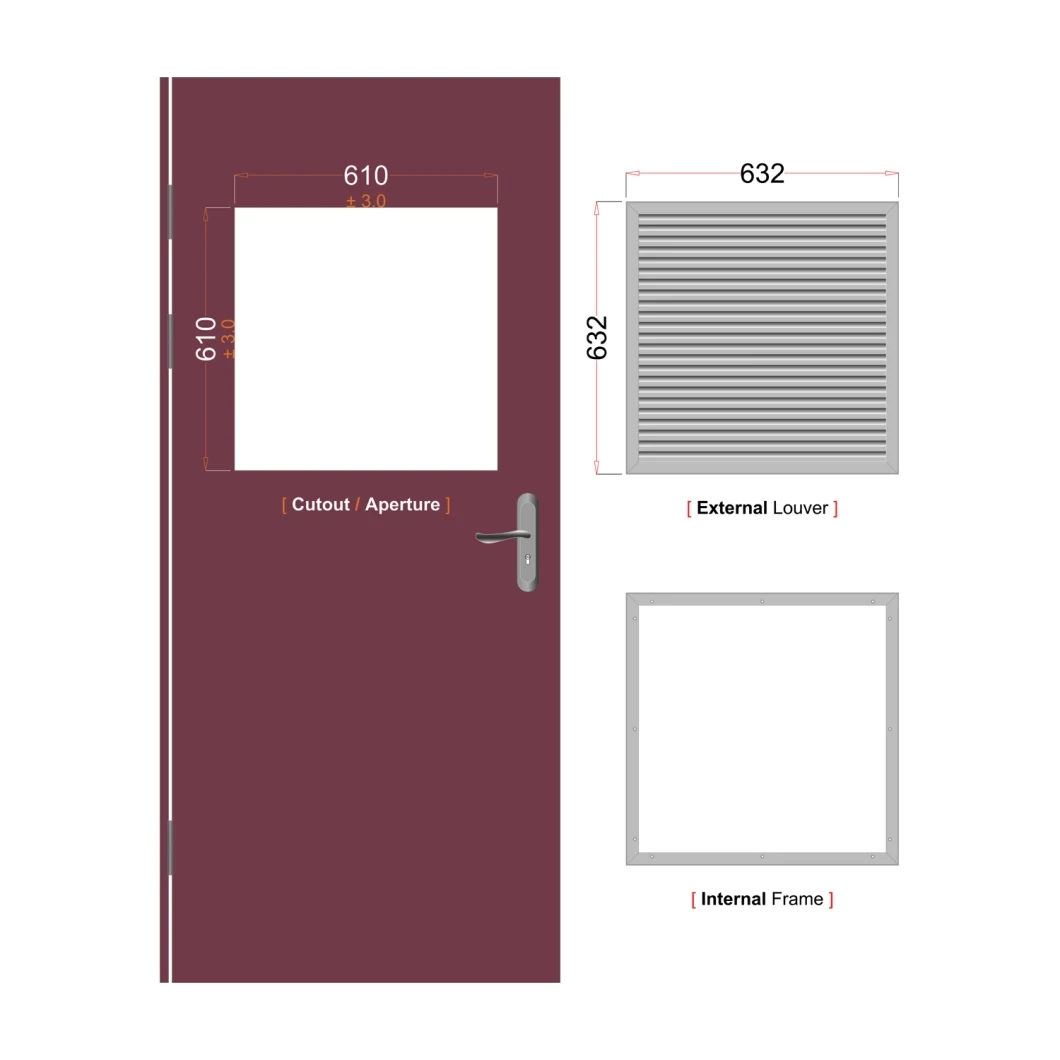

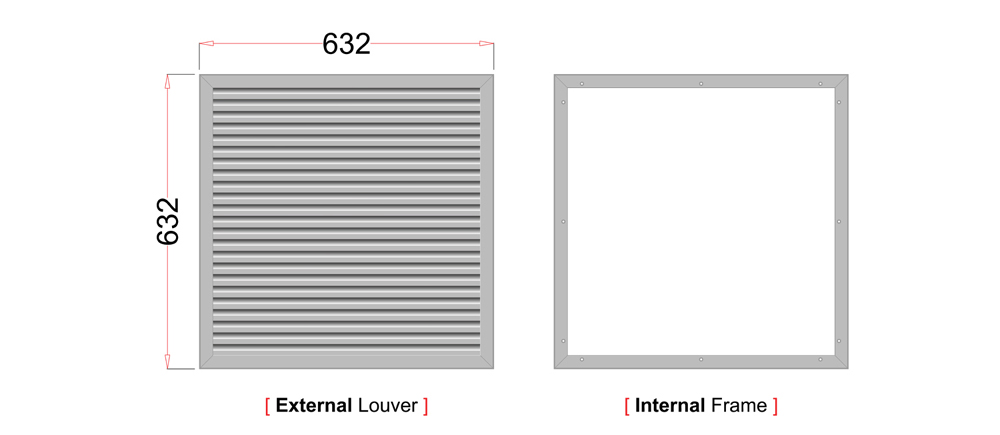

   COMPONENT  -   Internal Frame & External Louver
   MATERIAL  -  Galvanized Steel Plate

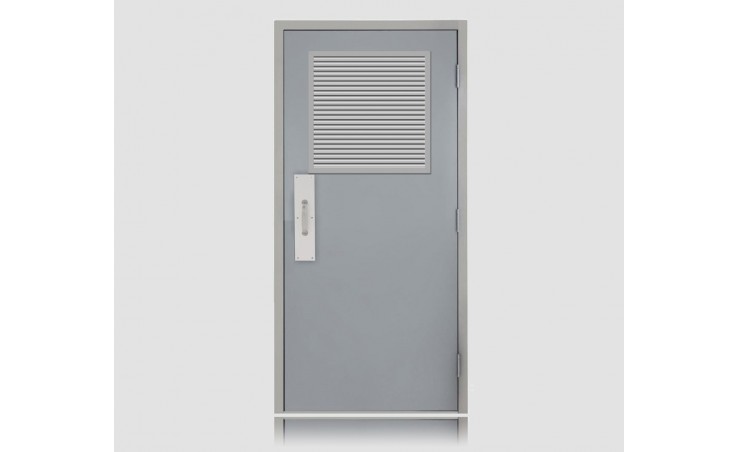

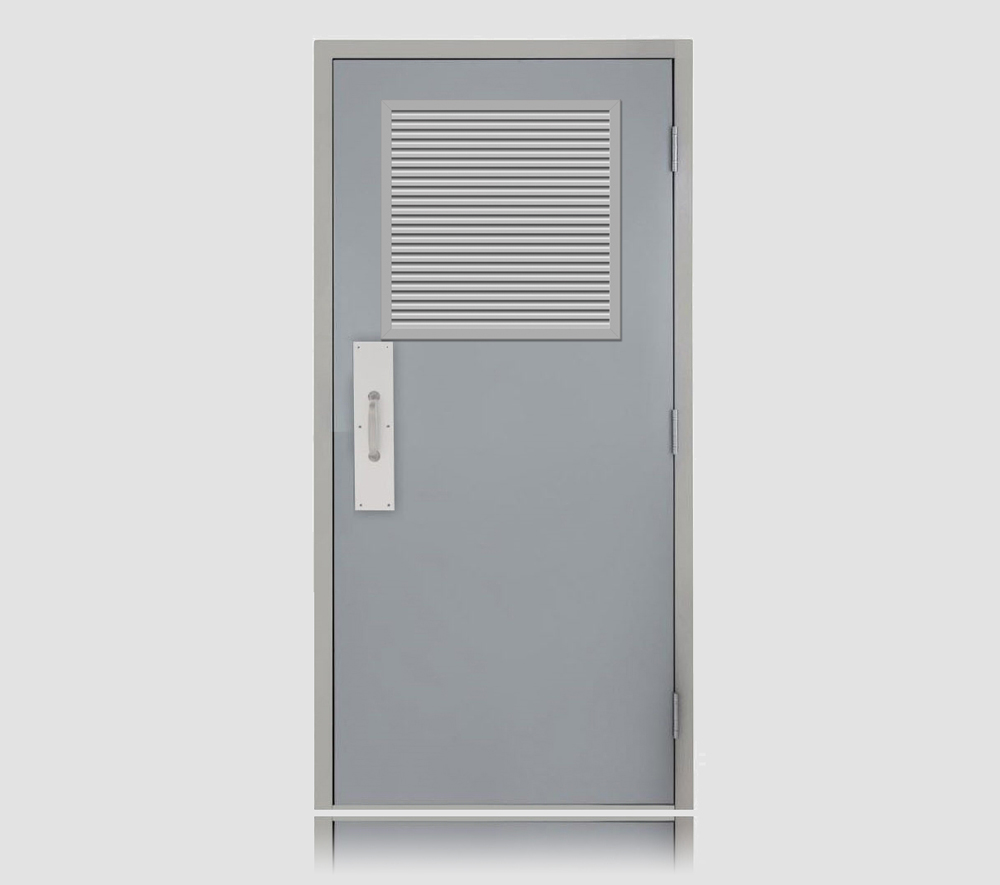

Louvers (door vents) can be added to virtually any commercial steel or wood door. Louvers provide air ventilation between rooms or inside of closets. Louvered doors help ventilate rooms when closed while still providing privacy and security. Louvers are often found inside of restroom and electrical or mechanical closet doors.

• Free Flow Area: 55% free

• Galvannealed steel

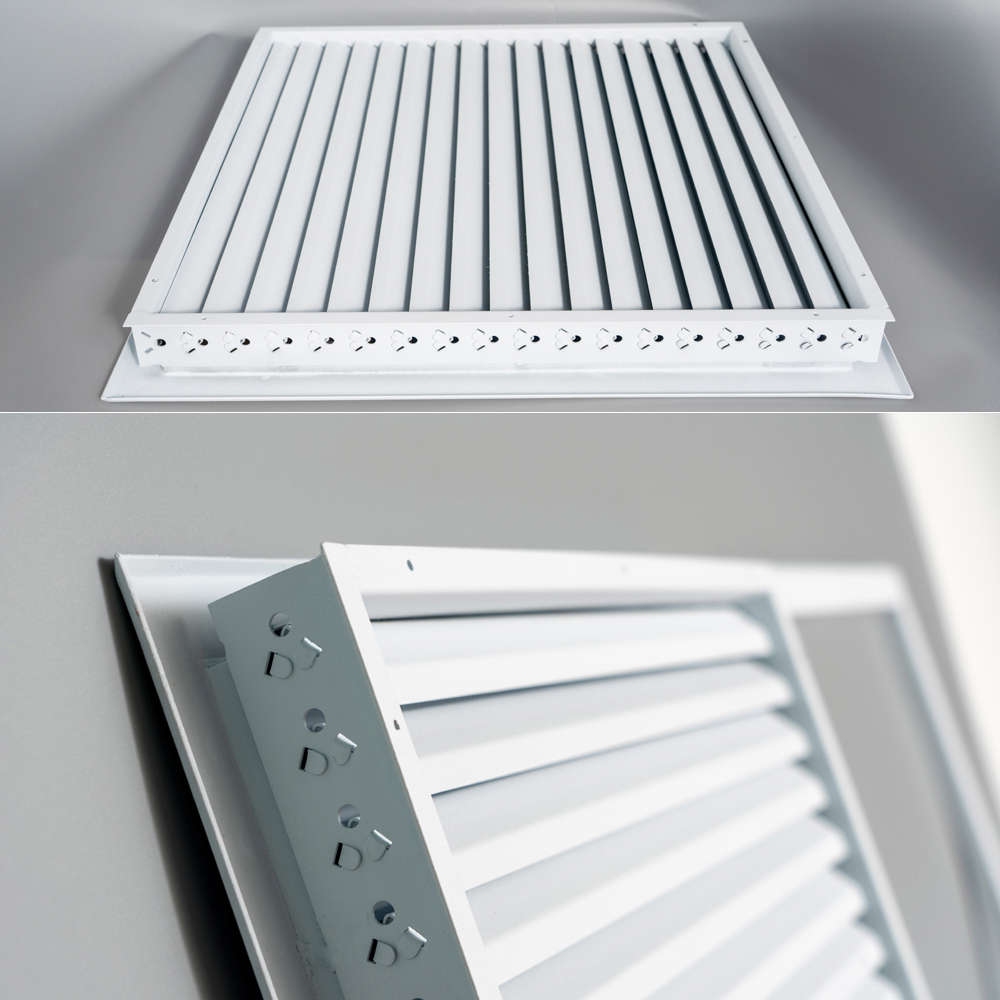

• Inverted "V" blades are frame supported at 1/2″ increments, with blocked vision design

• Single side mounting for noncorridor exposure with fastening screws included

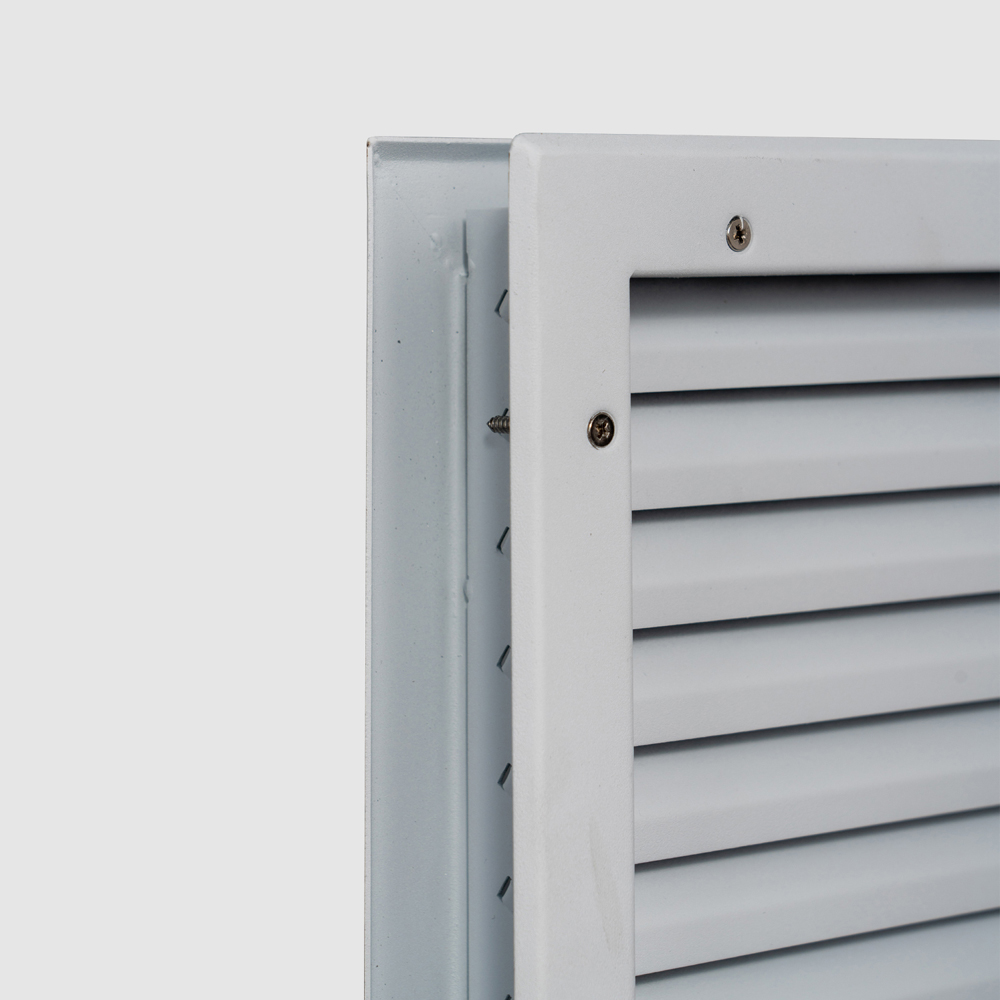

• Counter-sunk mounting screw-holes

• Self-Attaching

• Order size is equal to door cutout size

Call us for pricing on special louver types, sizes, finishes - and volume discounts.

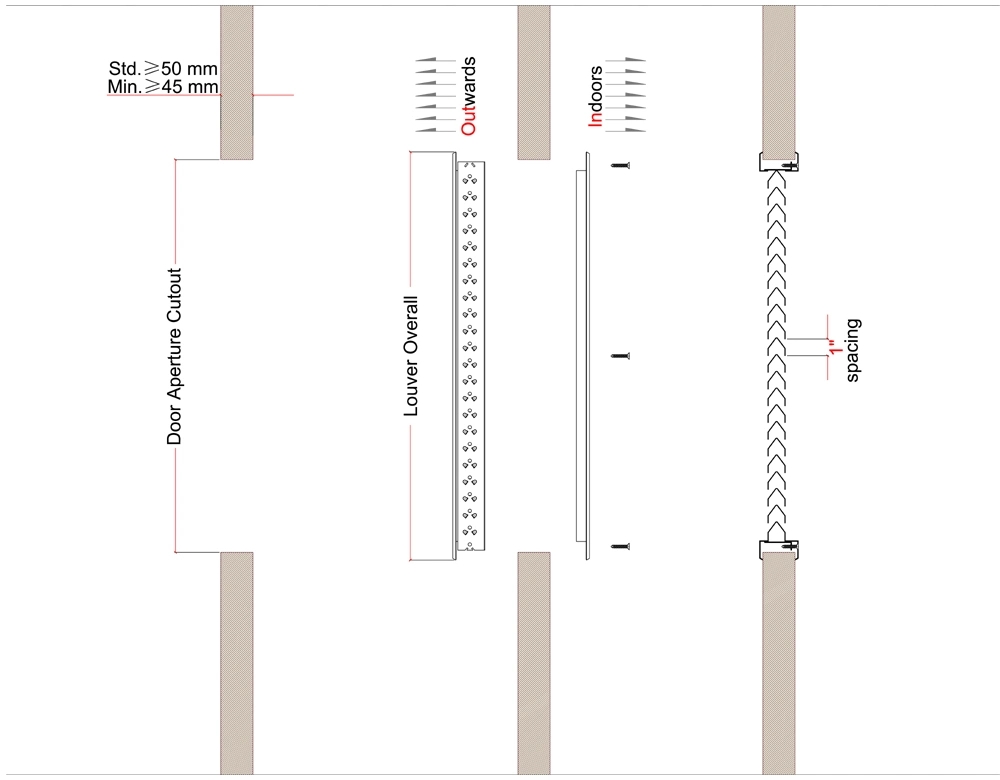

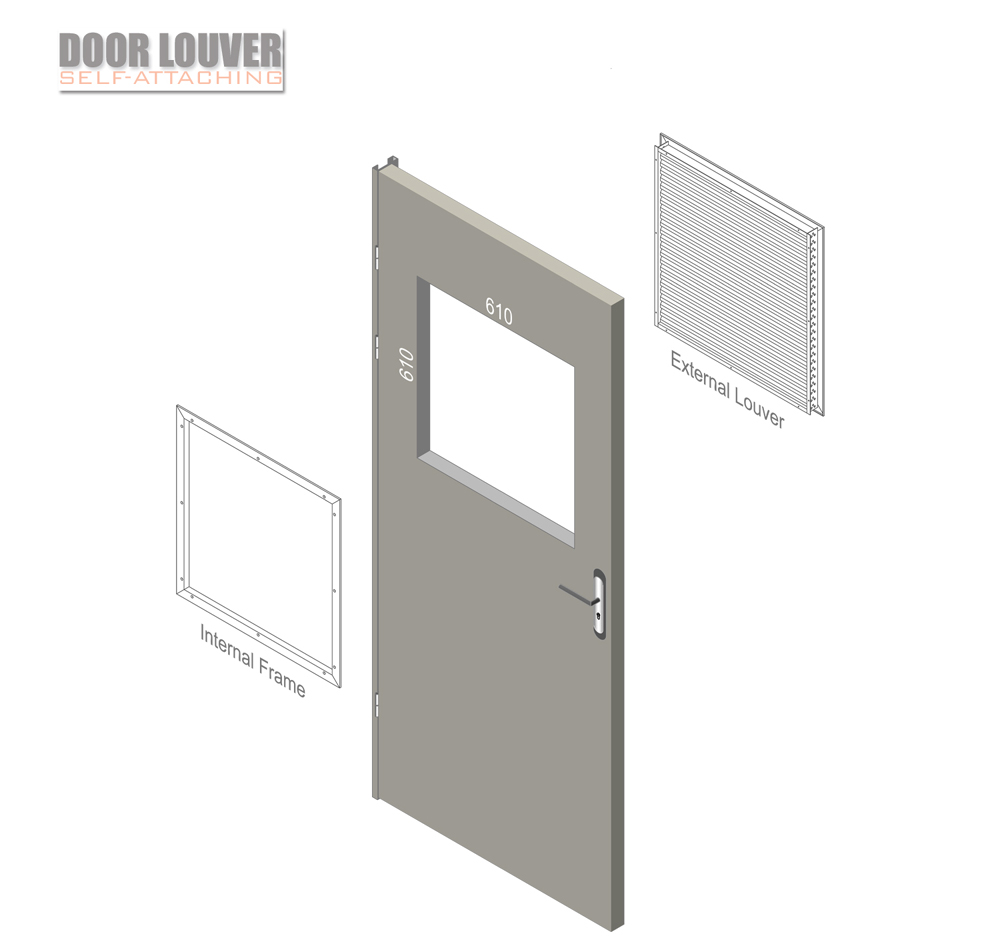

INSTALLATION

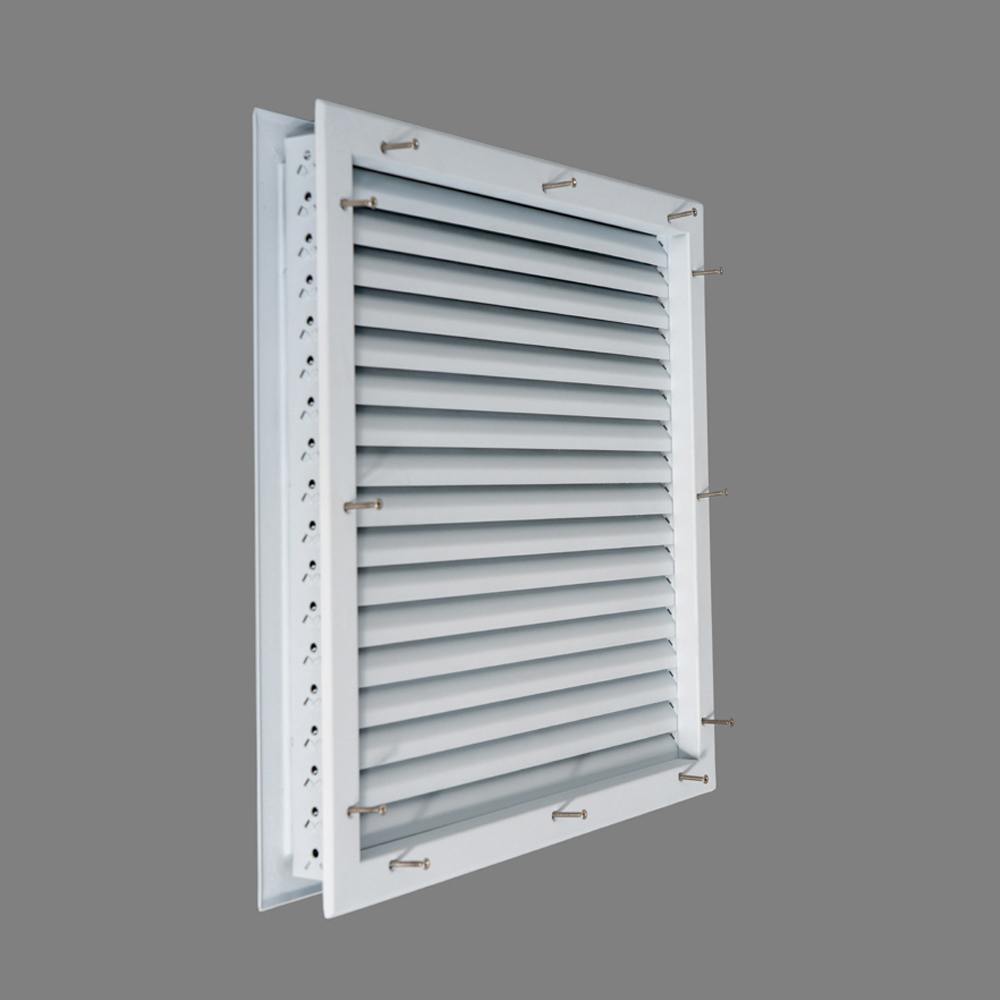

Self attaching style. Uses sheet metal screws that pass through the door cutout, and fasten to the opposite side of the Louver Panel
