NAME - Door Louver Panel
COMPONENT - Internal Frame & External Louver
MATERIAL - Galvanized Steel Plate

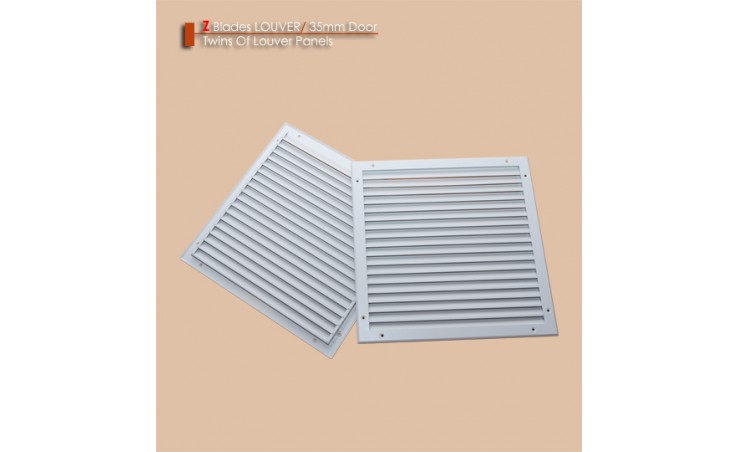

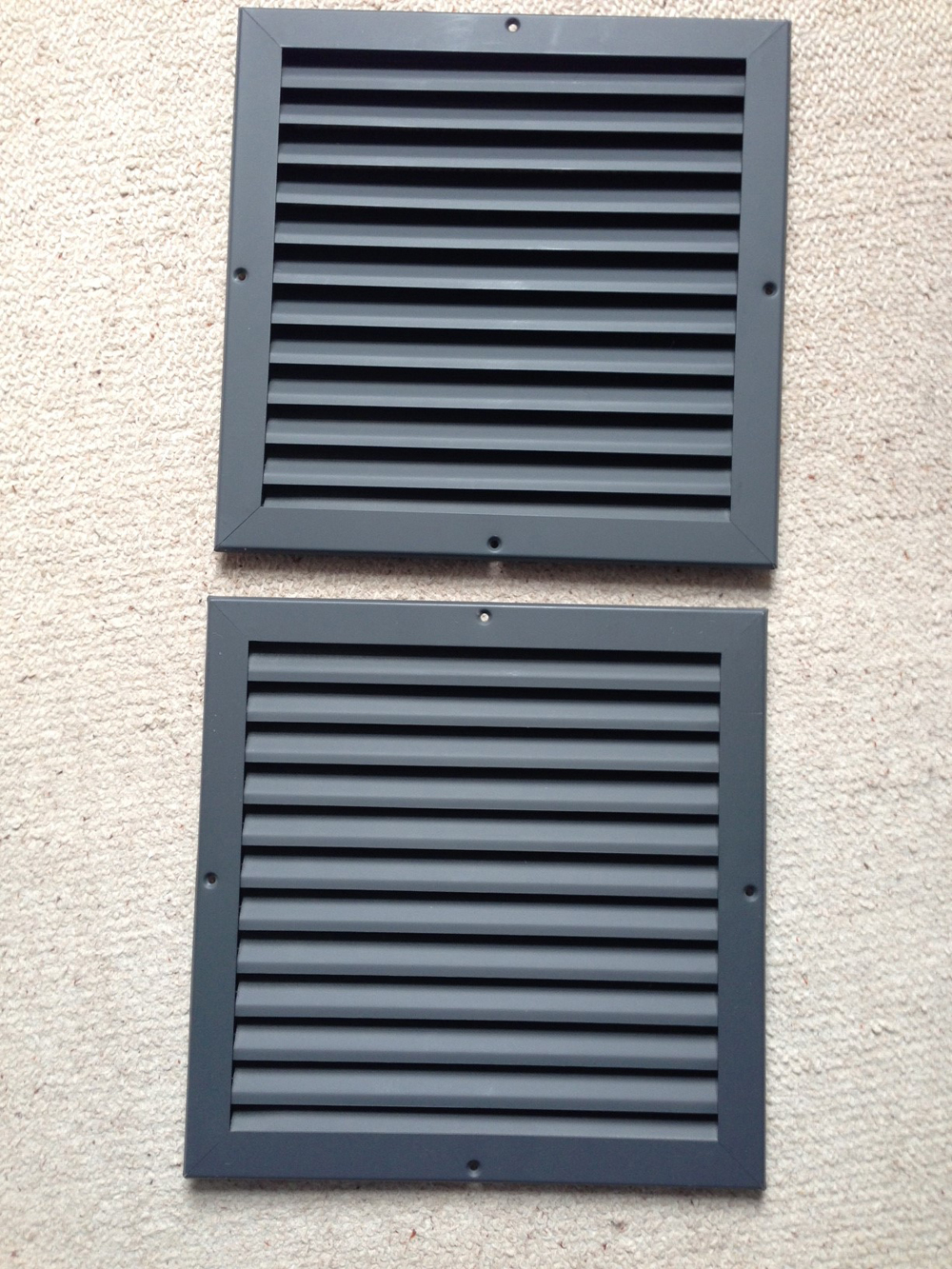

Name - Steel "Z" Louver Panel
Component - 1 Pair of Louvers
Specification:
Material - Galvanized Steel Plate
Frame Guage - 1.2mm thick

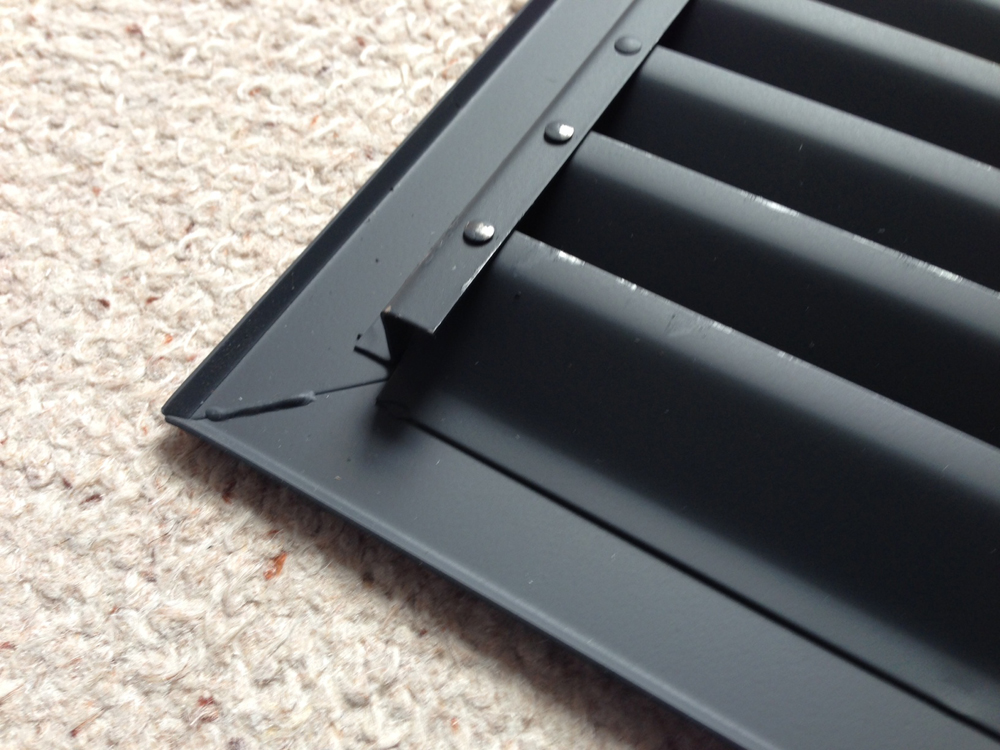

Blade Guage - 0.75mm thick, Shape Z
Primary Finish - Powder Coating

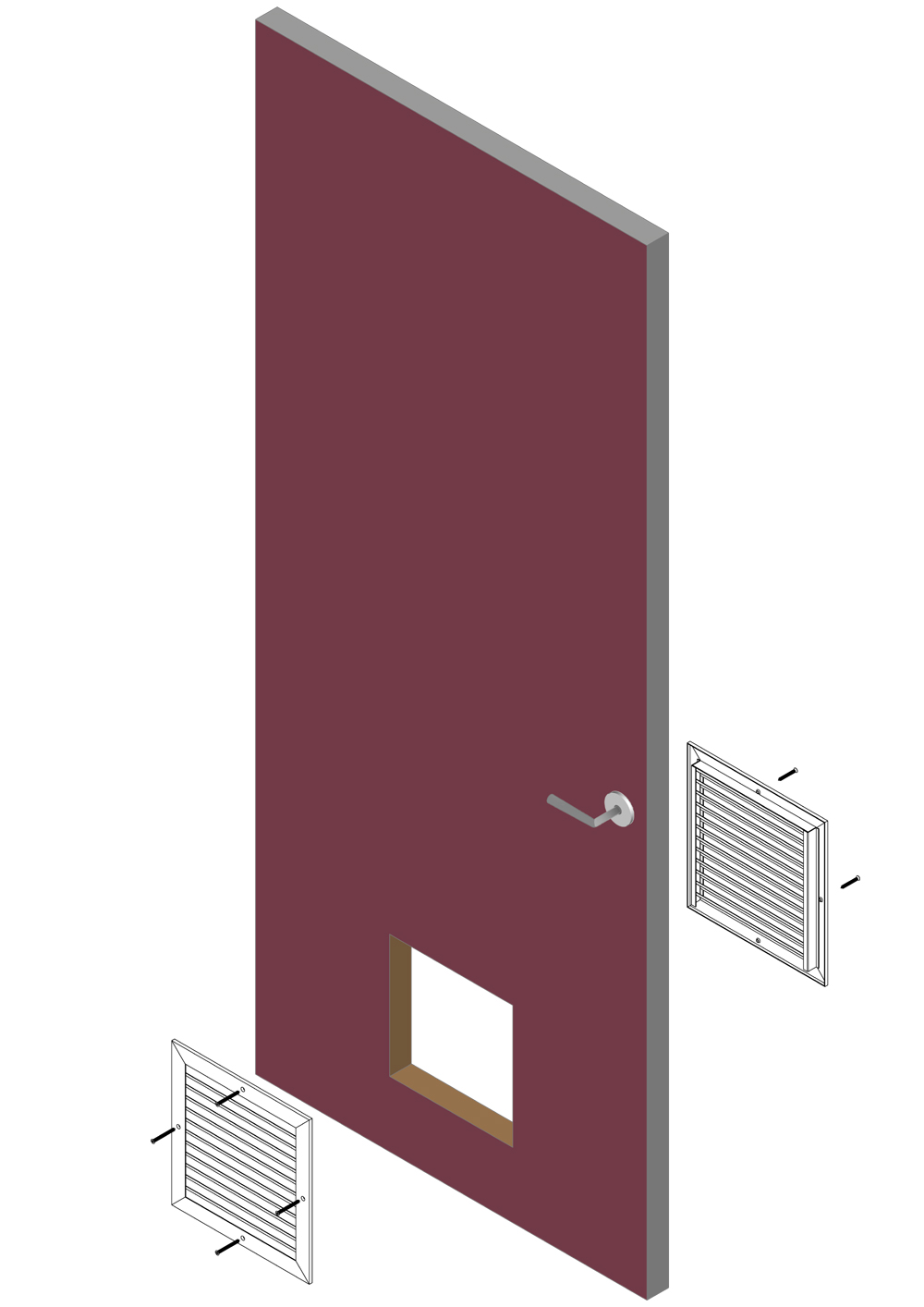

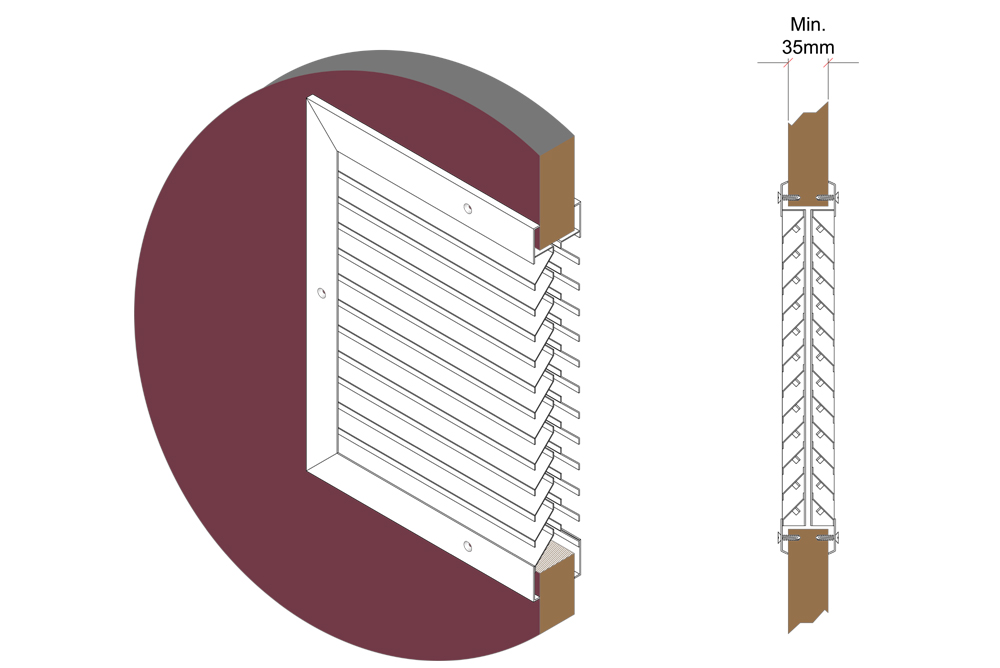

Installation - Screw Onto Door
| Model |
O.D. |
Door Aperture Cutout ( Size A x B ) |
Door Leaf THK (Size C) |
Drawing |
| LZ - 305 x 305 (12"x12") |
355.5 x 355.5 mm |
305 x 305 mm |
≥ 35mm |
Download |
| LZ - 457 x 305 (18"x12") |
508 x 355.5 mm |
457 x 305 mm |
≥ 35mm | Download |
| LZ - 457 x 457 (18"x18") |
508 x 508 mm |
457 x 457 mm |
≥ 35mm | Download |
| LZ - 609.6 x 305 (24"x12") | 660 x 355.5 mm |
609.6 x 305 mm | ≥ 35mm | Download |
| LZ - 609.6 x 609.6 (24"x24") |
660 x 600 mm | 609.6 x 609.6 mm | ≥ 35mm | Download |

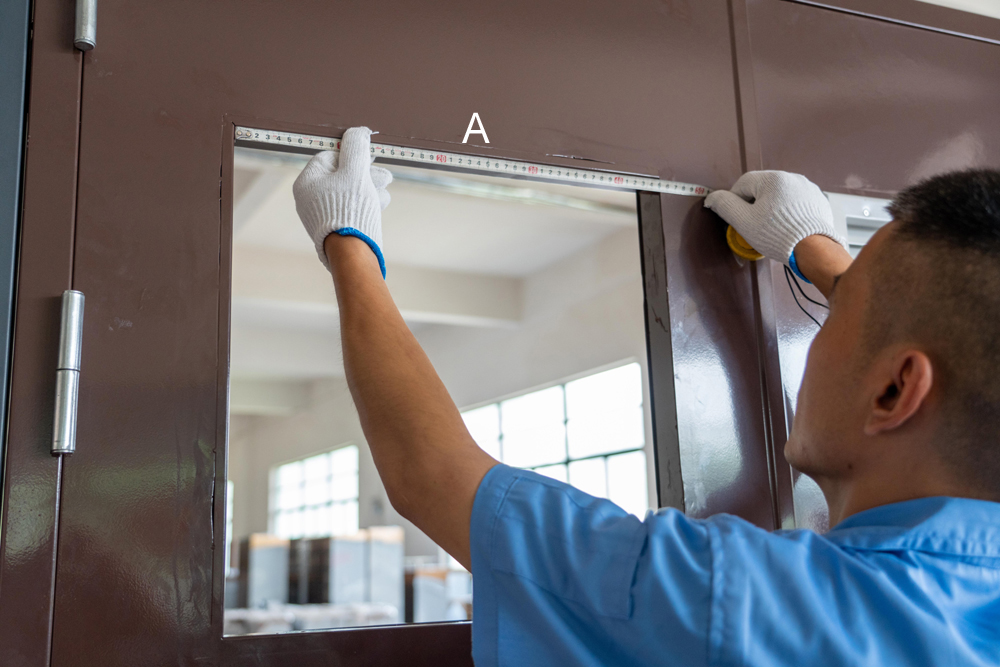

Size A: Door Aperture Cutout WIDTH

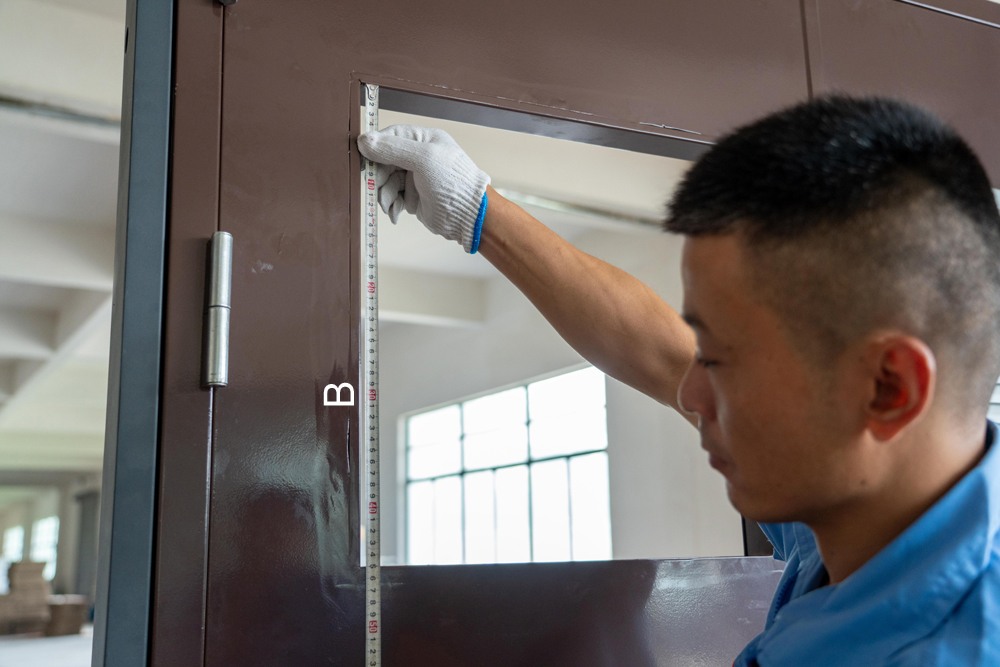

Size B: Door Aperture Cutout HEIGHT

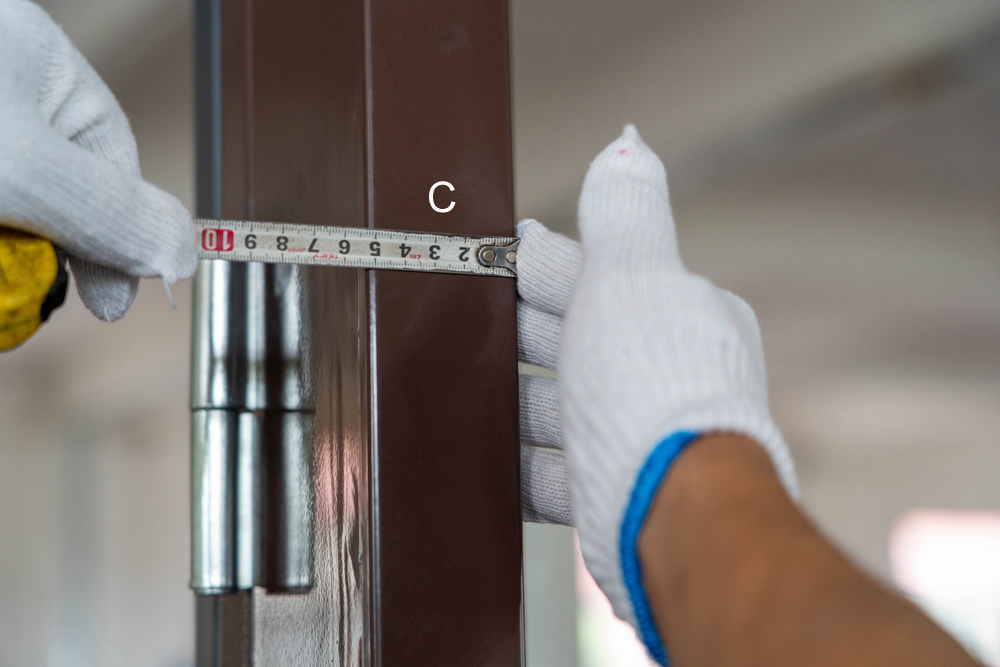

Size C: Door Leaf THICKNESS
VARY Primer Surface & COLOR OPTIONS
EVERPINE is a professional manufacturer of metal products, special in:Steel Louvers and Vision Lite Frames Applied on Commercial Steel Doors
