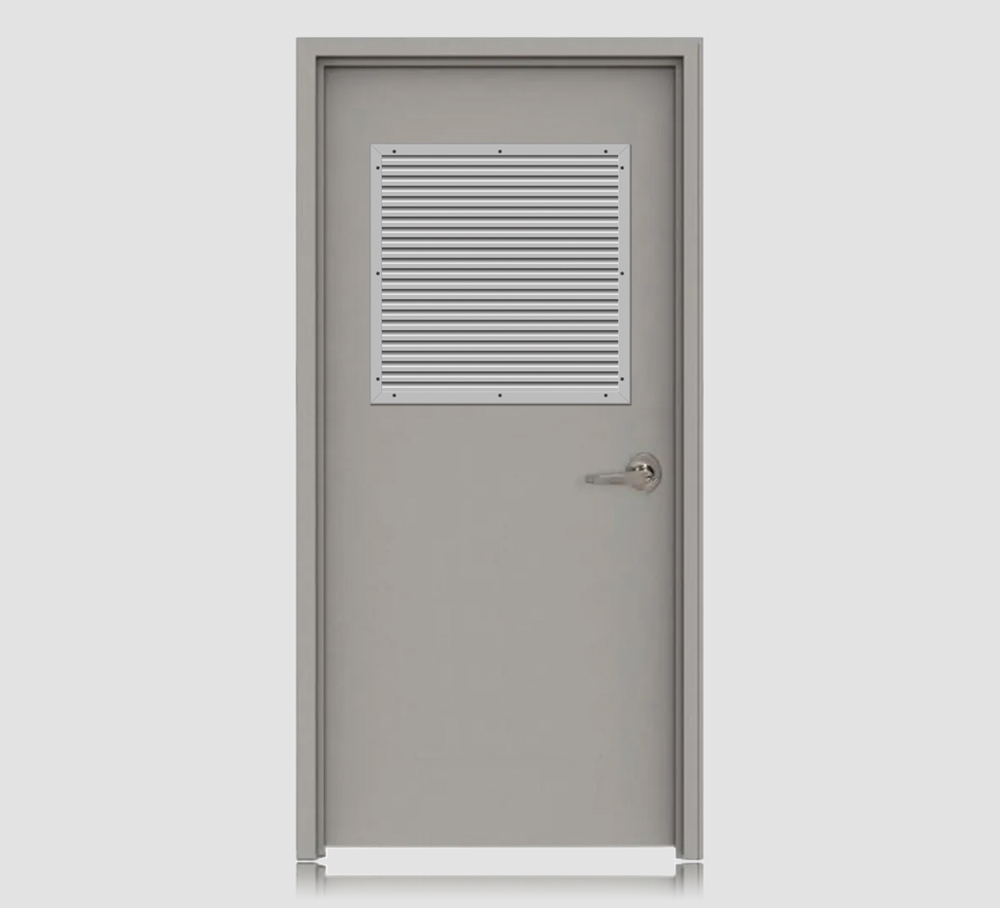

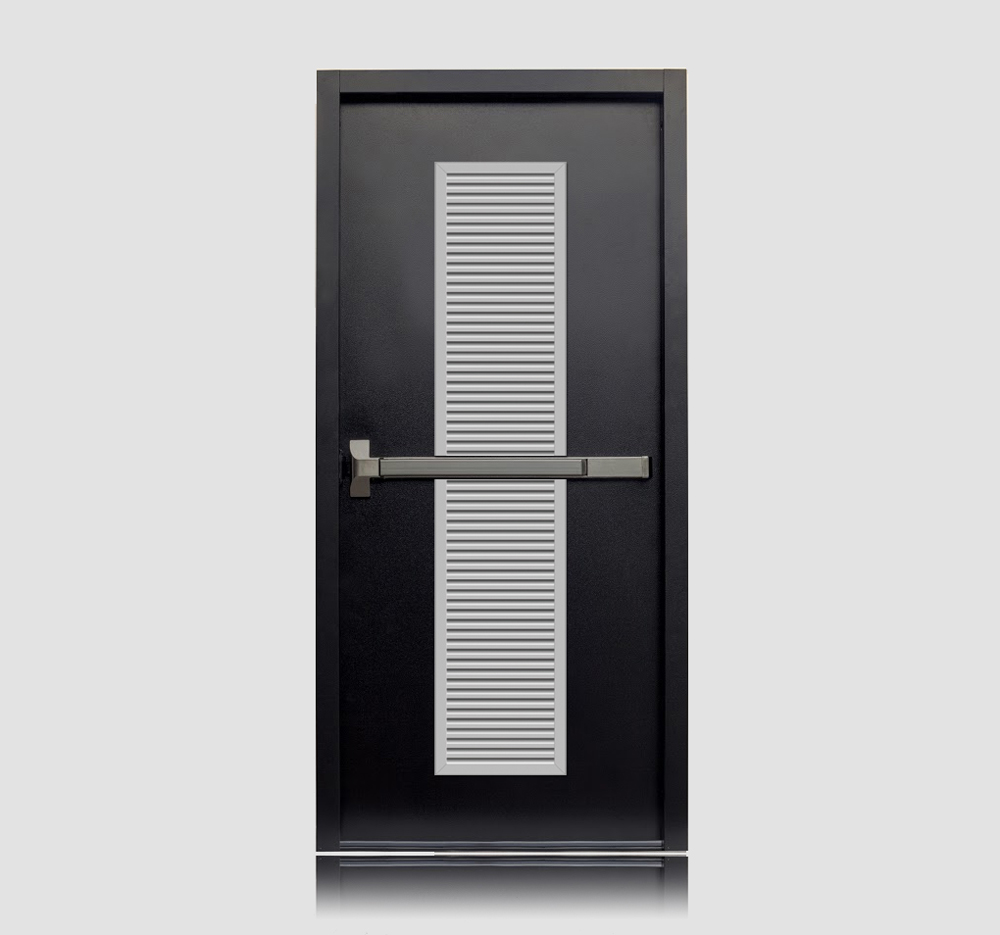

NAME - Door Louver Panel

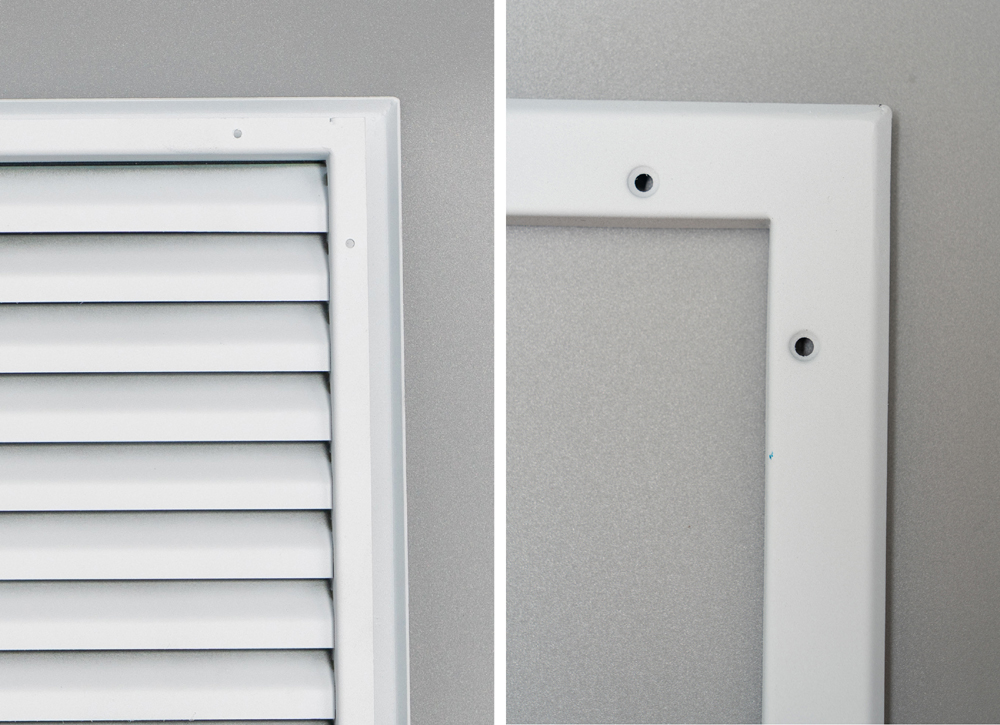

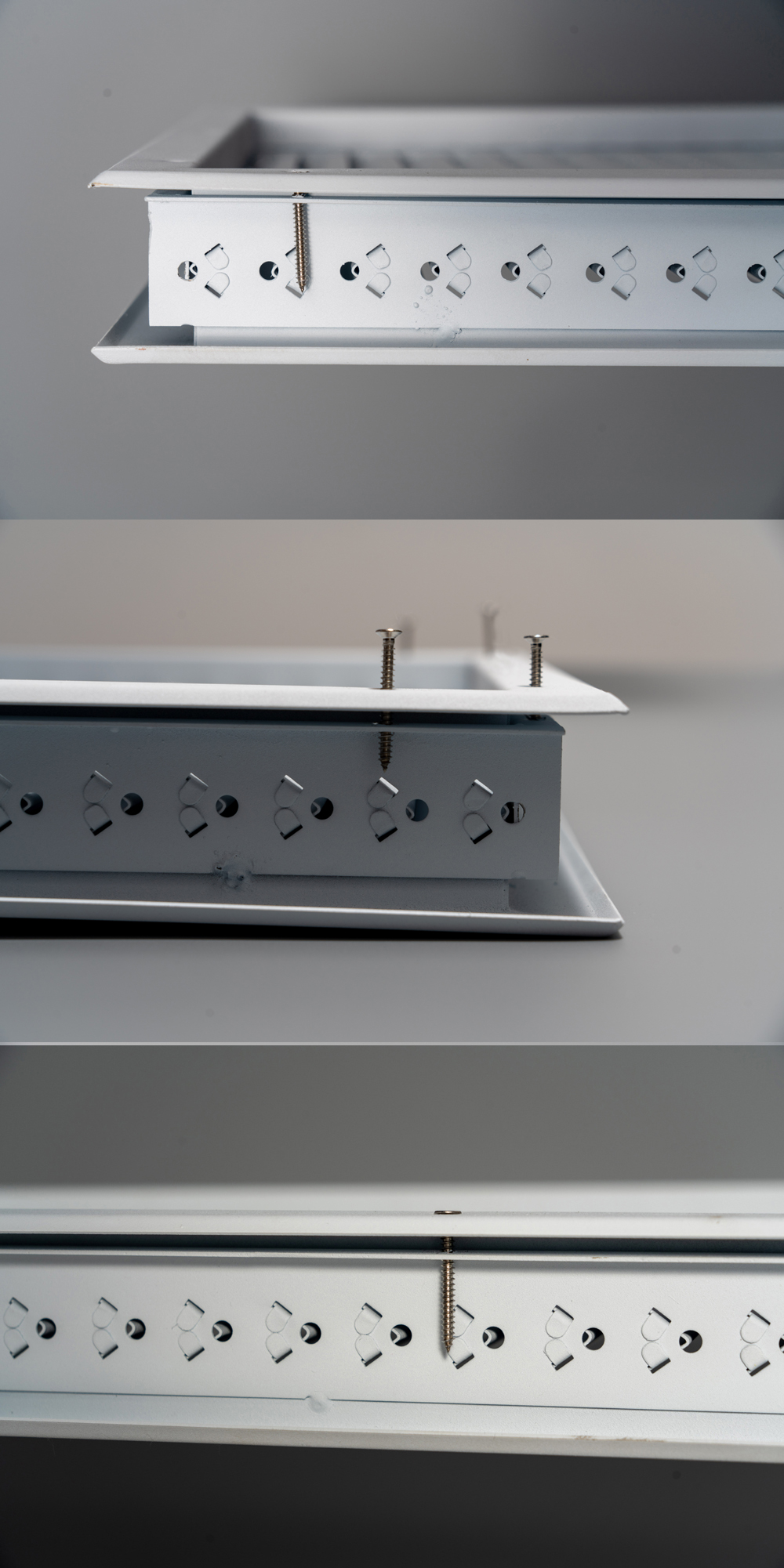

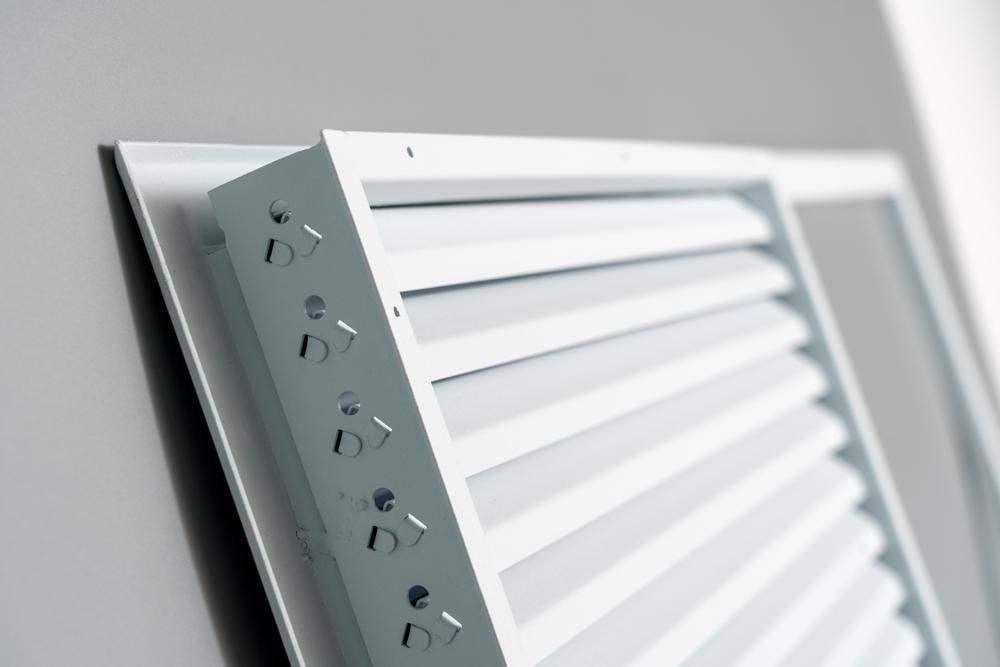

COMPONENT - Internal Frame & External Louver
MATERIAL - Galvanized Steel Plate
Name - Steel Louver Panel
Component - Internal Frame & External Louver
Specification:
Material - Galvanized Steel Plate
Frame Guage - 1.2mm thick

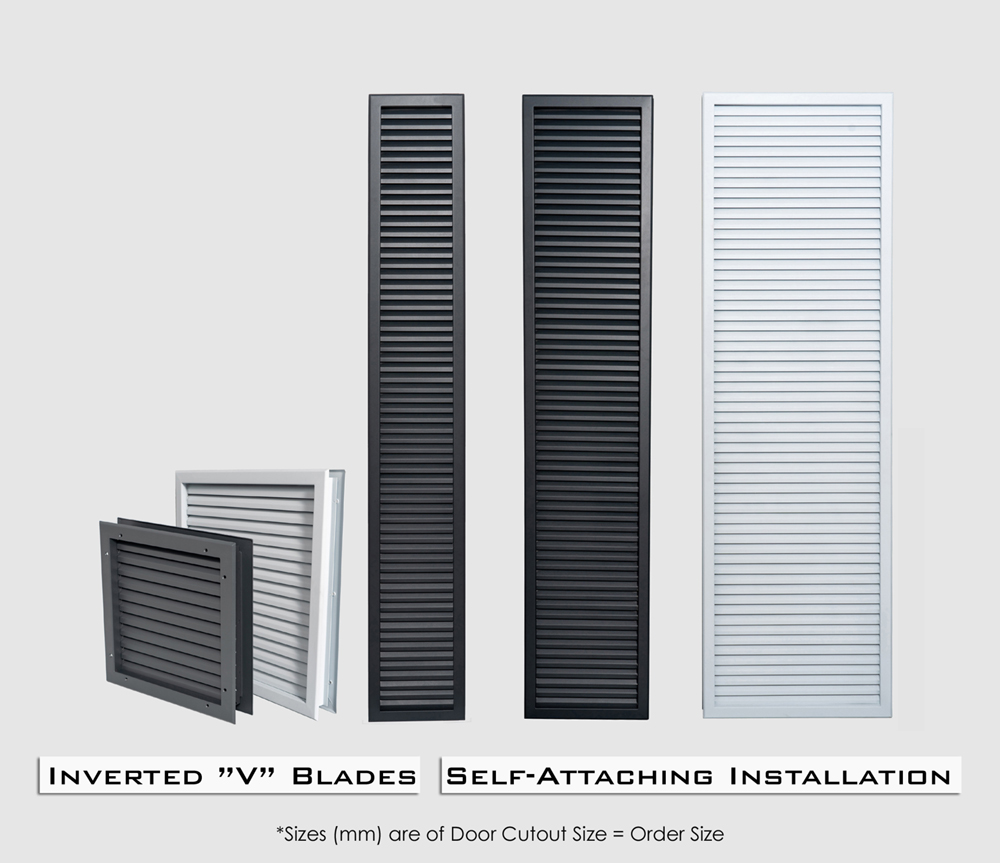

Blade Guage - 0.75mm thick, Inverted V Shape, 1" Spacing
Primary Finish - Powder Coating
| Model |
Louver Panel Overall |
Door Aperture Cutout ( Size A x B ) |
Door Leaf THK ( Size C ) |
Drawing |
| LV - 305 x 305 |
327 x 327 mm |
305 x 305 mm |
50mm* |
Download |
| LV - 457 x 457 |
480 x 480 mm |
457 x 457 mm |
50mm* |
Download |
| LV - 587 x 587 |
610 x 610 mm |
587 x 587 mm |
50mm* |
Download |
| LV - 610 x 610 |
632 x 632 mm |
610 x 610 mm |
50mm* |
Download |
| LV - 203 x 1524 |
225 x 1546 mm |
203 x 1524 mm |
50mm* |
Download |
| LV - 305 x 1524 |
327 x 1546 mm |
305 x 1524 mm |
50mm* |
Download |
| LV - 457 x 914 |
479 x 936 mm |
457 x 914 mm |
50mm* |
Download |
| LV - 457 x 1525 |
480 x 1547 mm |
457x1525 mm |
50mm* |
Download |
* Door Leaf = 50mm (Standard); If thinner, please advise specially;

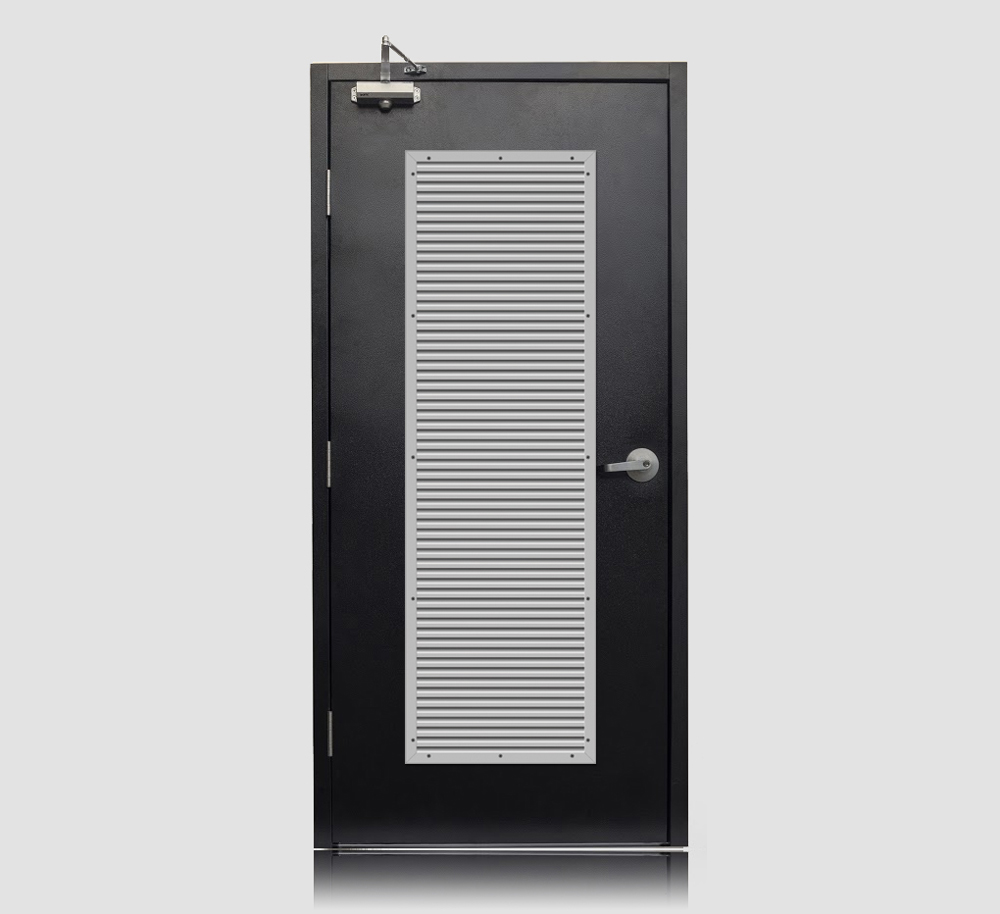

LV203x1524

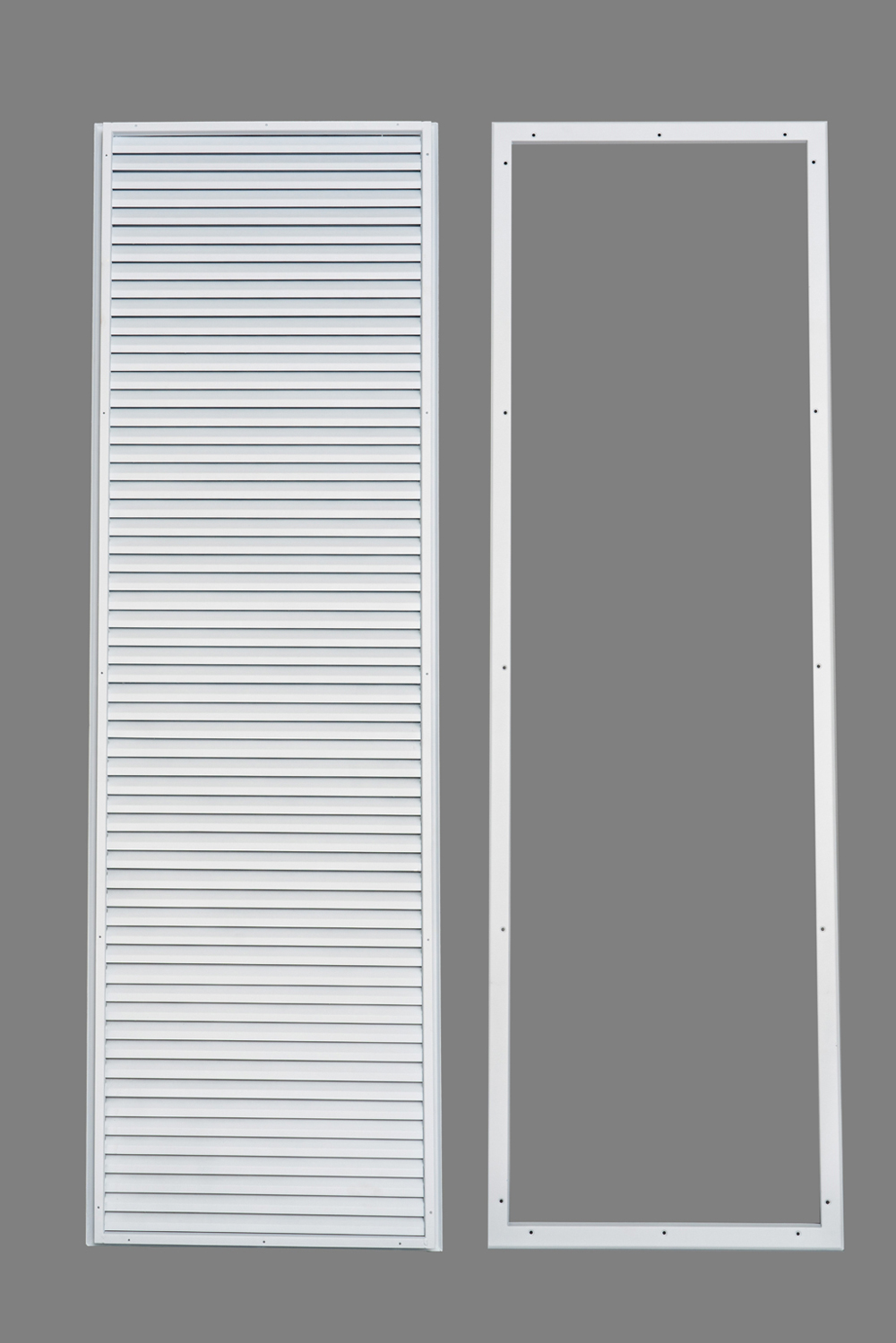

LV305x1524
LV203x1524

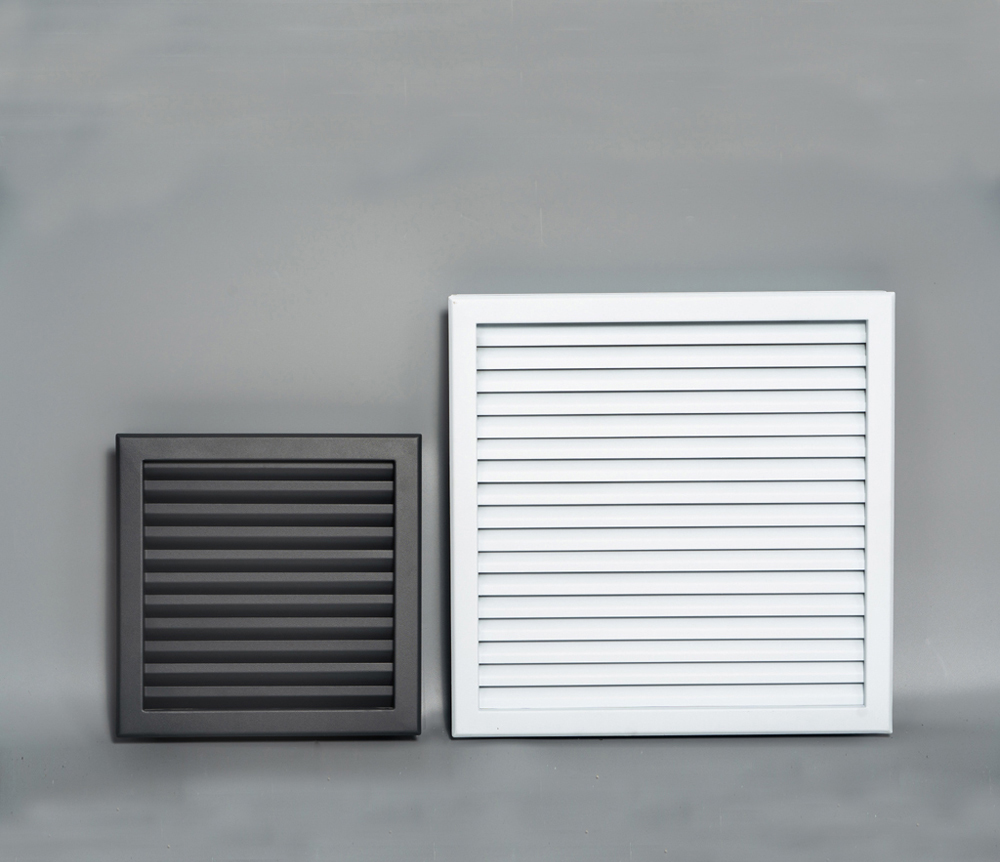

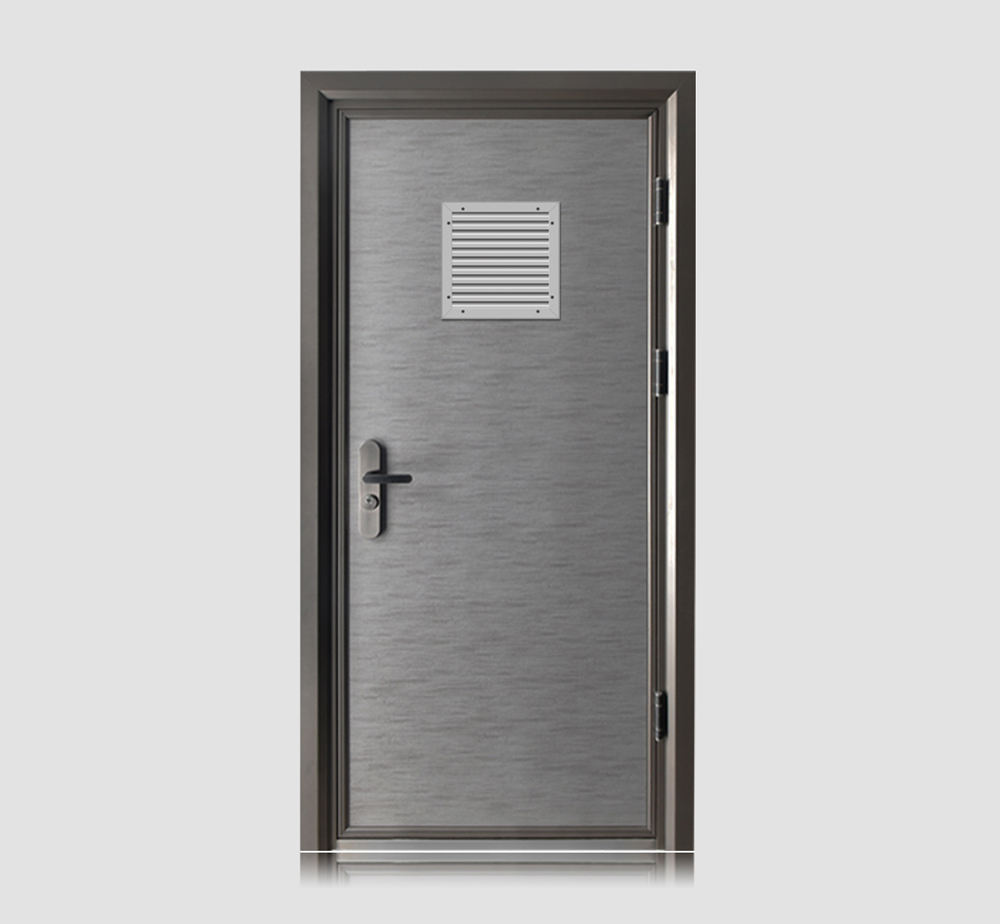

LV305x305

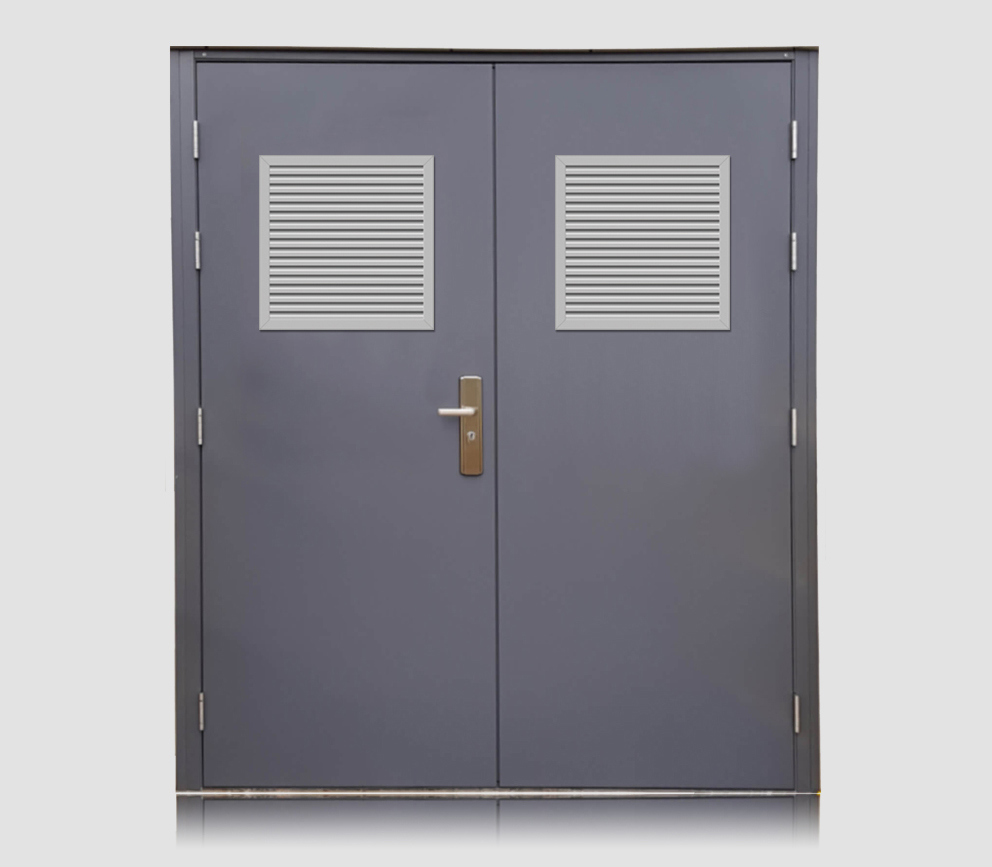

LV457x457
LV587x587
LV610x610
VARY Primer Surface & COLOR OPTIONS
EVERPINE is a professional manufacturer of metal products, special in:Steel Louvers and Vision Lite Frames Applied on Commercial Steel Doors
