NAME - Door Louver Panel

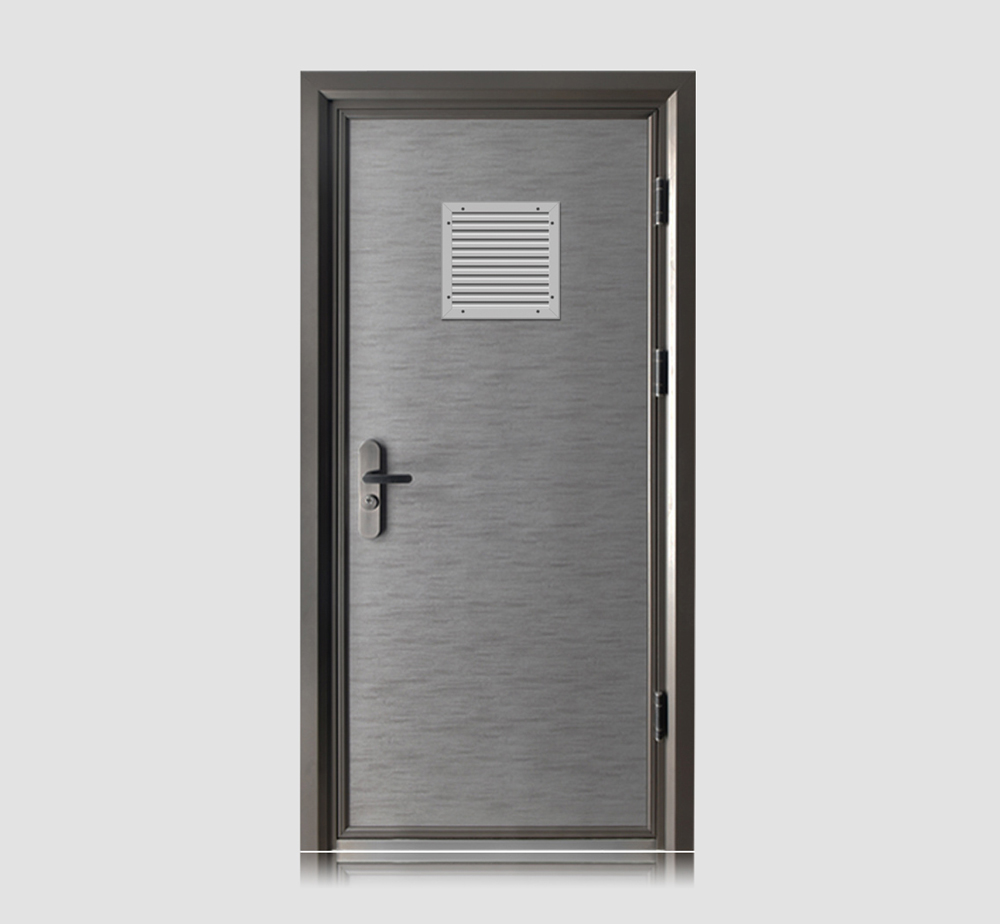

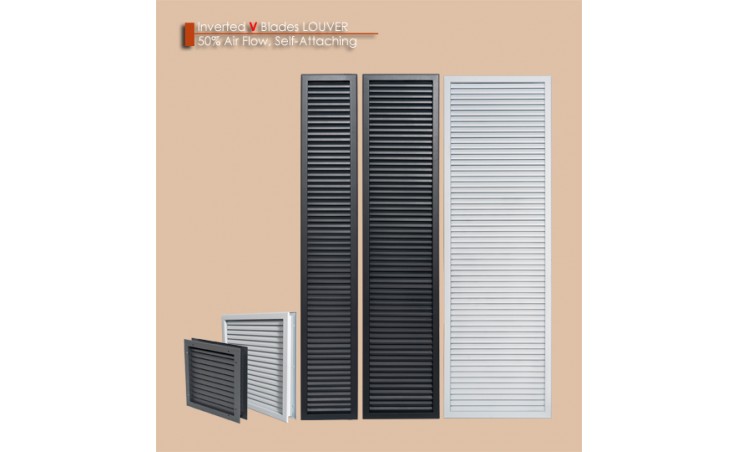

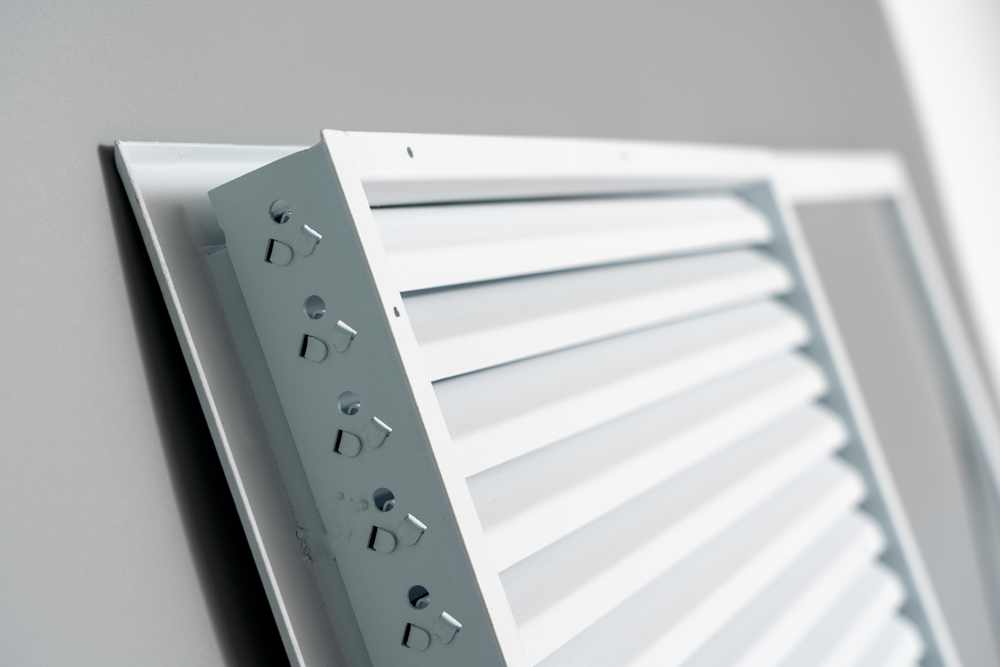

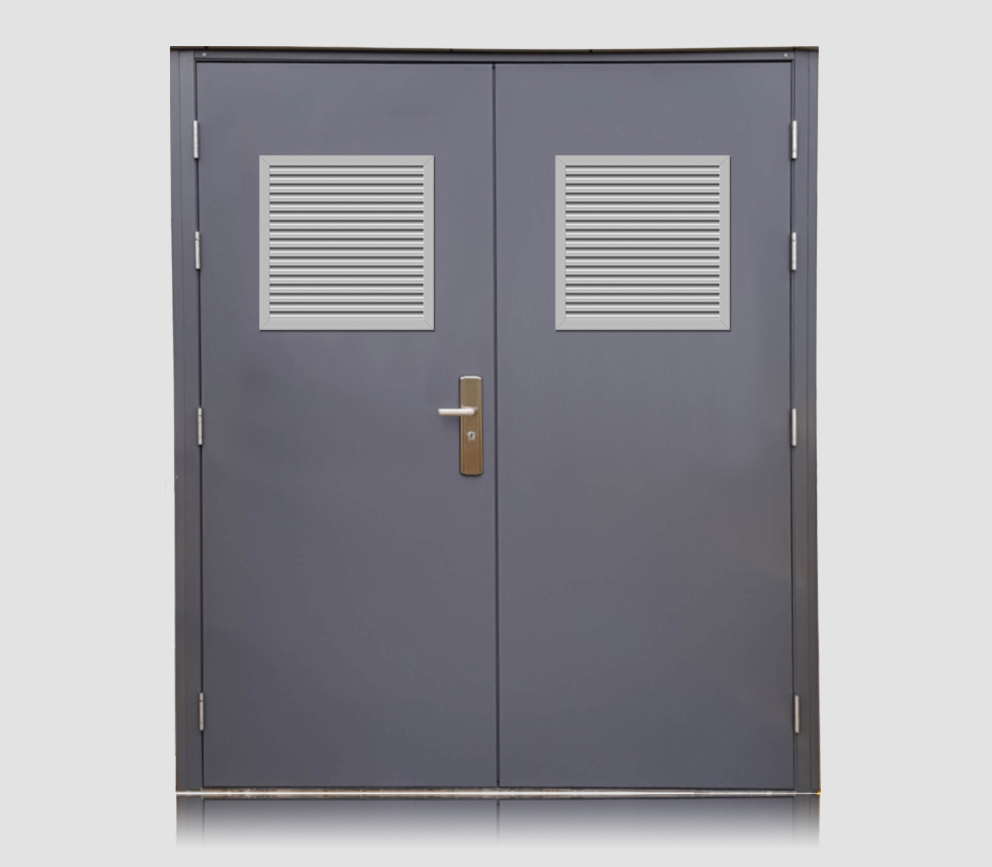

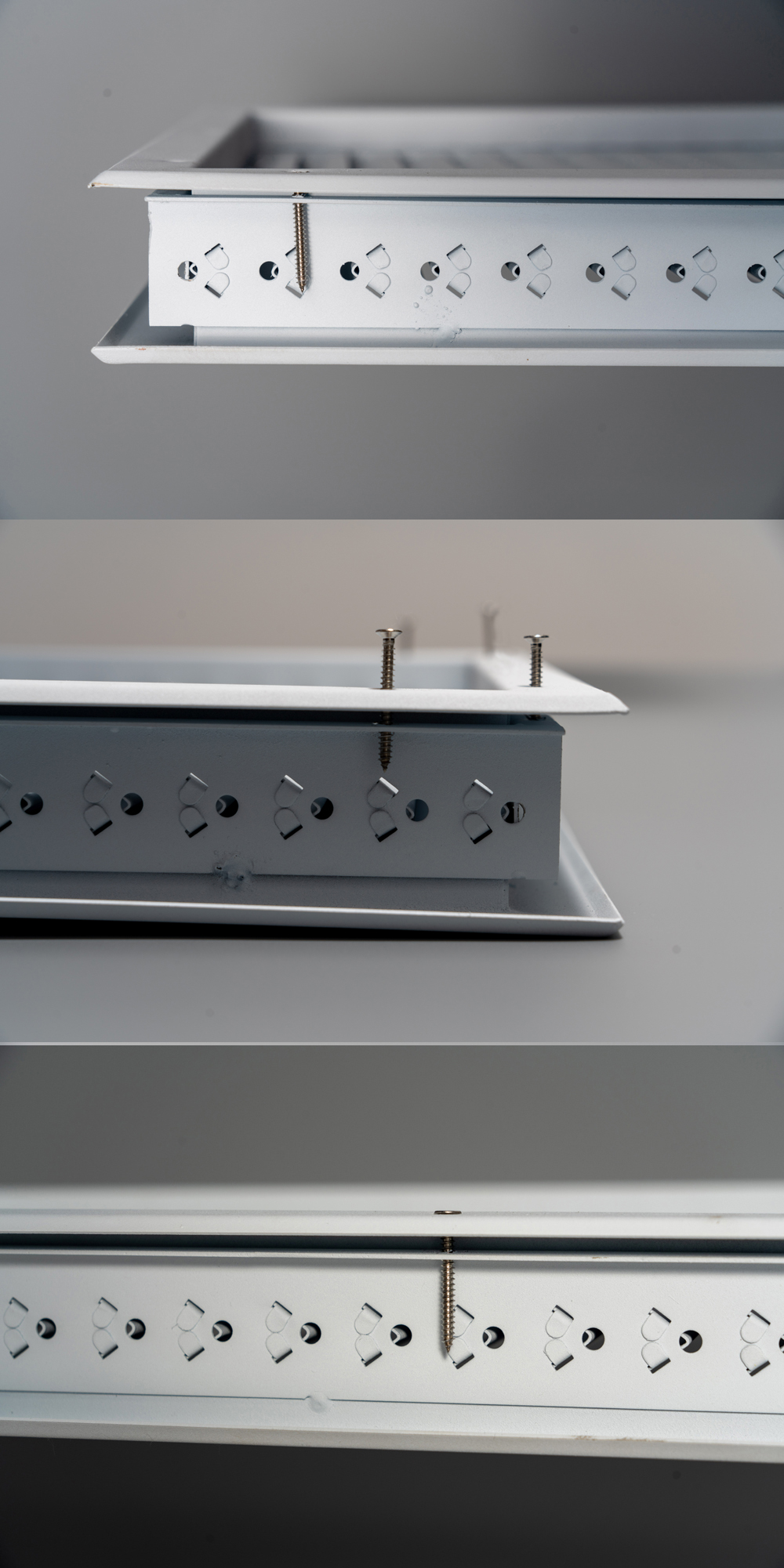

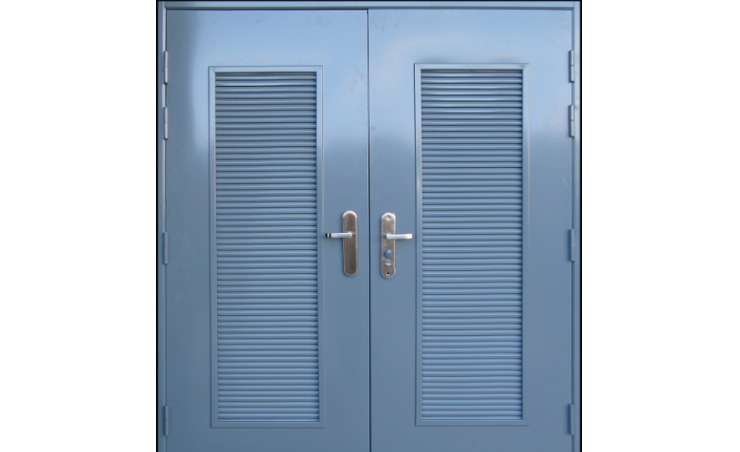

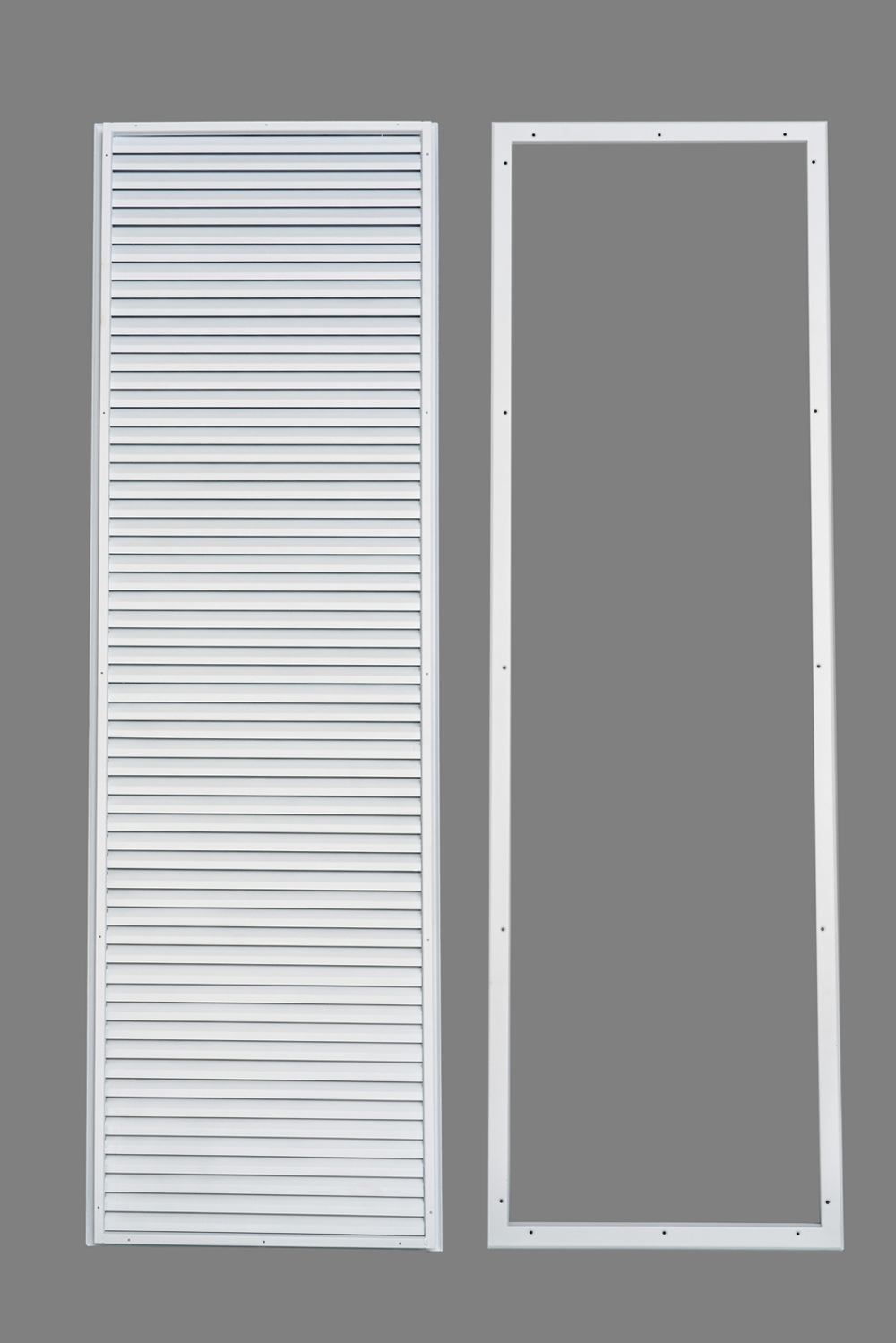

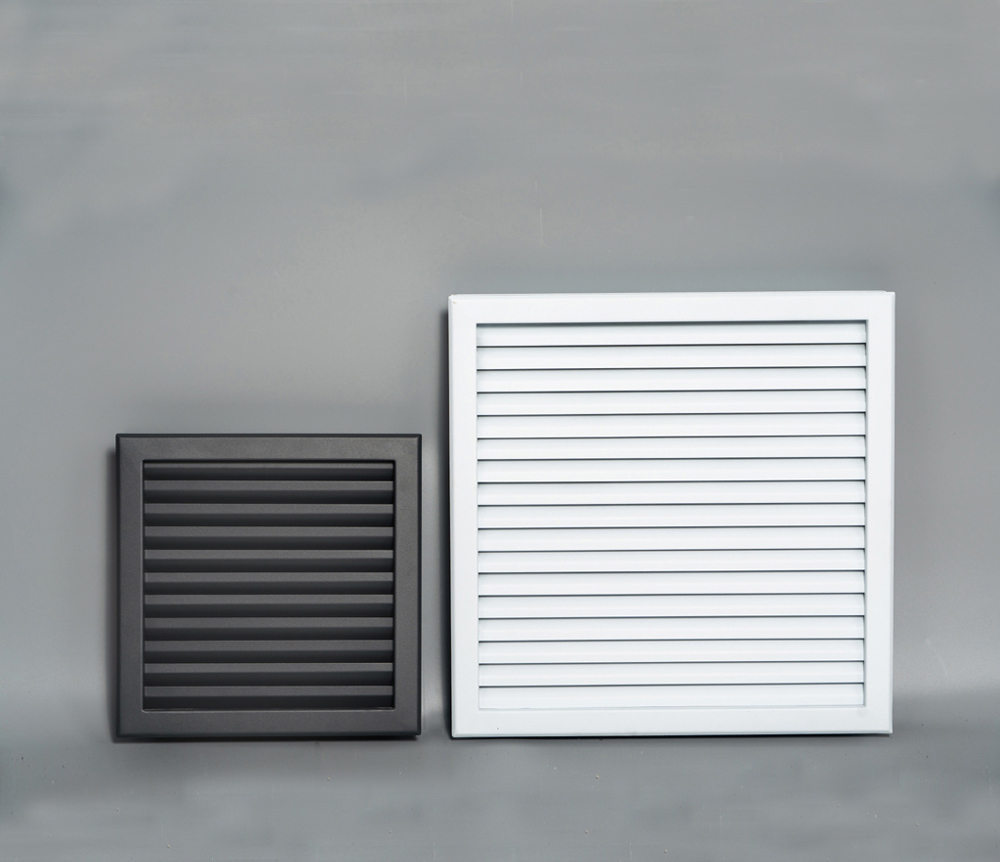

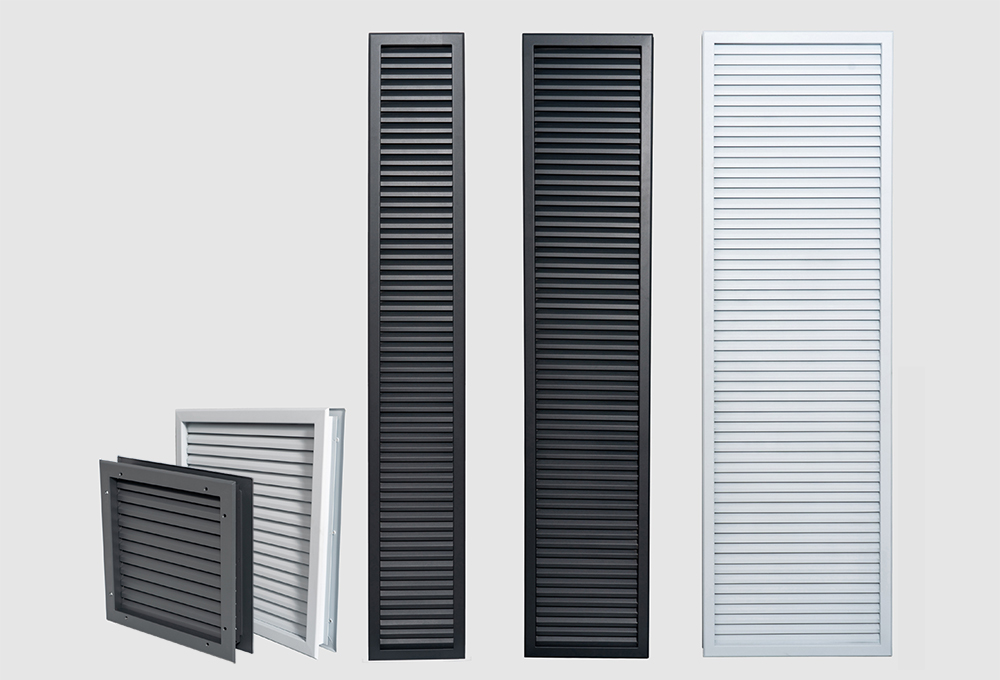

COMPONENT - Internal Frame & External Louver
MATERIAL - Galvanized Steel Plate
Name - Steel Louver Panel

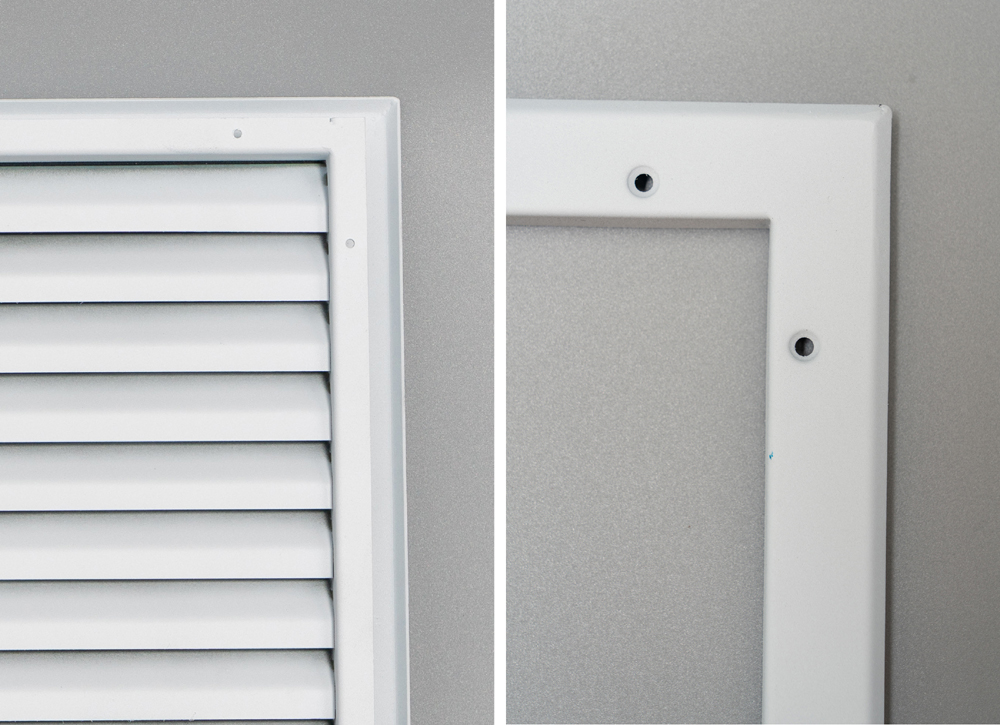

Component - Louver Panel and Auxiliary Frame
Specification:
Material - Galvanized Steel Plate
Frame Guage - 1.2mm thick
Blade Guage - 0.75mm thick, Inverted Y Shape, 1" Spacing
Primary Finish - Powder Coating
| LV - |
ORDER Size |
Door CUTOUT |
Panel O.D. |
Drawing |
| ■ | 12" x 12" | 305 mm x 305 mm | 328 mm x 328 mm | Download |
|
■ |
18" x 18" |
457 mm x 457 mm |
480 mm x 480 mm |
Download |
|
■ |
23" x 23" |
587 mm x 587 mm |
610 mm x 610 mm |
Download |
|
■ |
24" x 24" |
610 mm x 610 mm |
633 mm x 633 mm |
Download |
|
▅ |
12" x 18" | 305 mm x 457 mm | 328 mm x 480 mm | Download |
|
▅ |
12" x 24" | 305 mm x 610 mm | 328 mm x 633 mm | Download |
| ▄ | 16" x 10" | 406.5 mm x 254 mm | 429.5 mm x 277 mm |
Download |
| ▄ | 18" x 12" | 457 mm x 305 mm | 480 mm x 328 mm | Download |
| ▅ | 18" x 24" | 457 mm x 610 mm | 480 mm x 633 mm | Download |
| ▄ | 24" x 12" | 610 mm x 305 mm | 633 mm x 328 mm | Download |
| ▄ | 24" x 18" | 610 mm x 457 mm | 633 mm x 480 mm | Download |
| ▉ | 8" x 60" |
203 mm x 1524 mm |
226 mm x 1547 mm |
Download |
| ▉ | 12" x 60" |
305 mm x 1524 mm |
328 mm x 1547 mm |
Download |
| ▉ | 18" x 36" | 457 mm x 914 mm | 480 mm x 937 mm | Download |
| ▉ | 18 x 56" | 457 mm x 1422 mm | 480 mm x 1445 mm | Download |
| ▉ | 18" x 60" |
457 mm x 1524 mm |
480 mm x 1547 mm |
Download |
| ▉ | 18" x 64" | 457 mm x 1626 mm | 480 mm x 1649 mm | Download |
| ▉ | 18" x 66" | 457 mm x 1676 mm | 480 mm x 1699 mm | Download |
| ▉ | 24" x 56" | 610 mm x 1422 mm | 633 mm x 1445 mm | Download |
| ▉ | 24" x 60" | 610 mm x 1524 mm | 633 mm x 1547 mm | Download |
| ▉ | 24" x 64" | 610 mm x 1626 mm | 633 mm x 1649 mm | Download |
| ▉ | 24" x 66" | 610 mm x 1676 mm | 633 mm x 1699 mm | Download |
| ▉ | 24" x 72" | 610 mm x 1829 mm | 633 mm x 1852 mm | Download |
* Door Leaf = 50mm (Standard); If thinner, please specify;

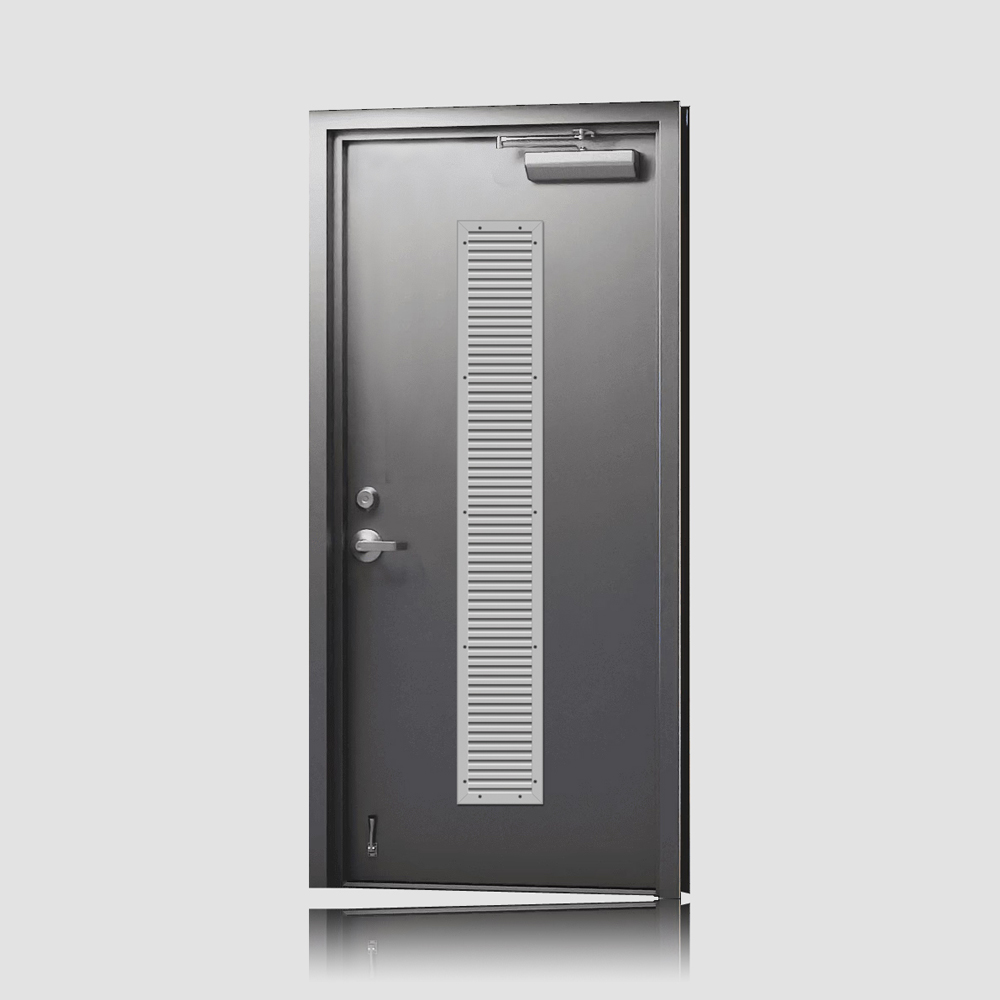

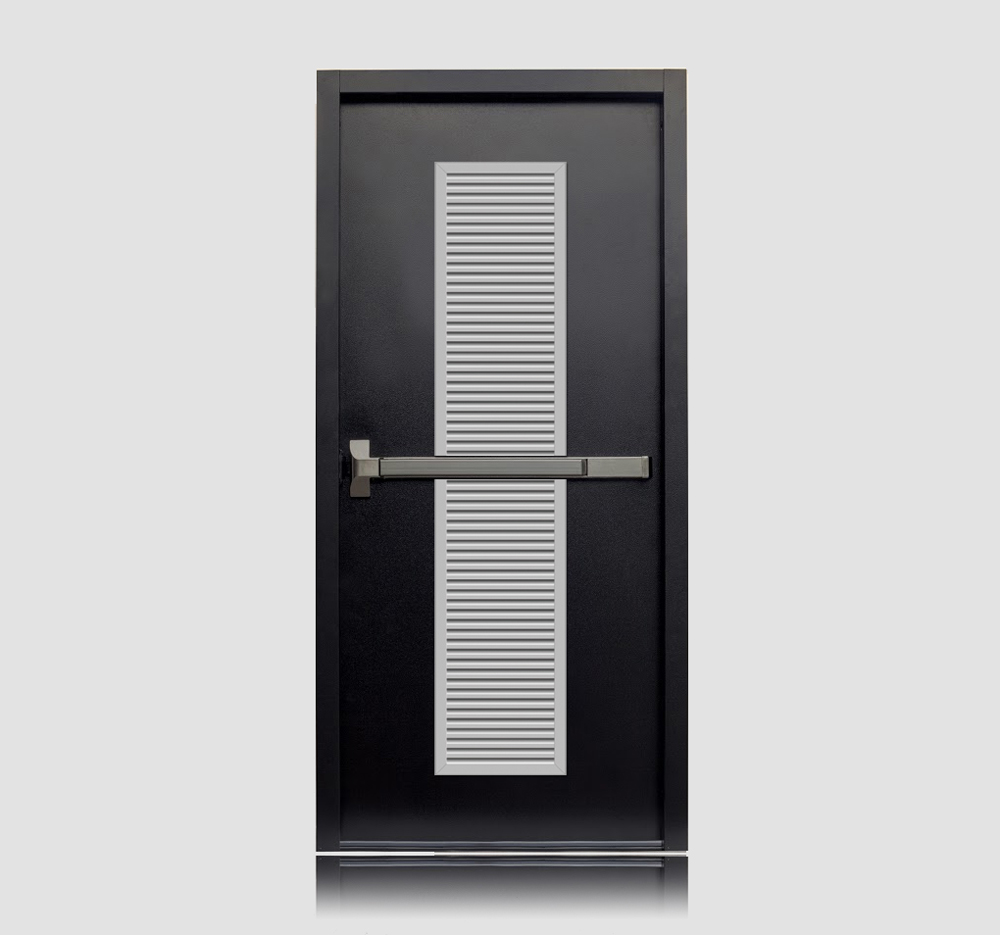

LV203x1524

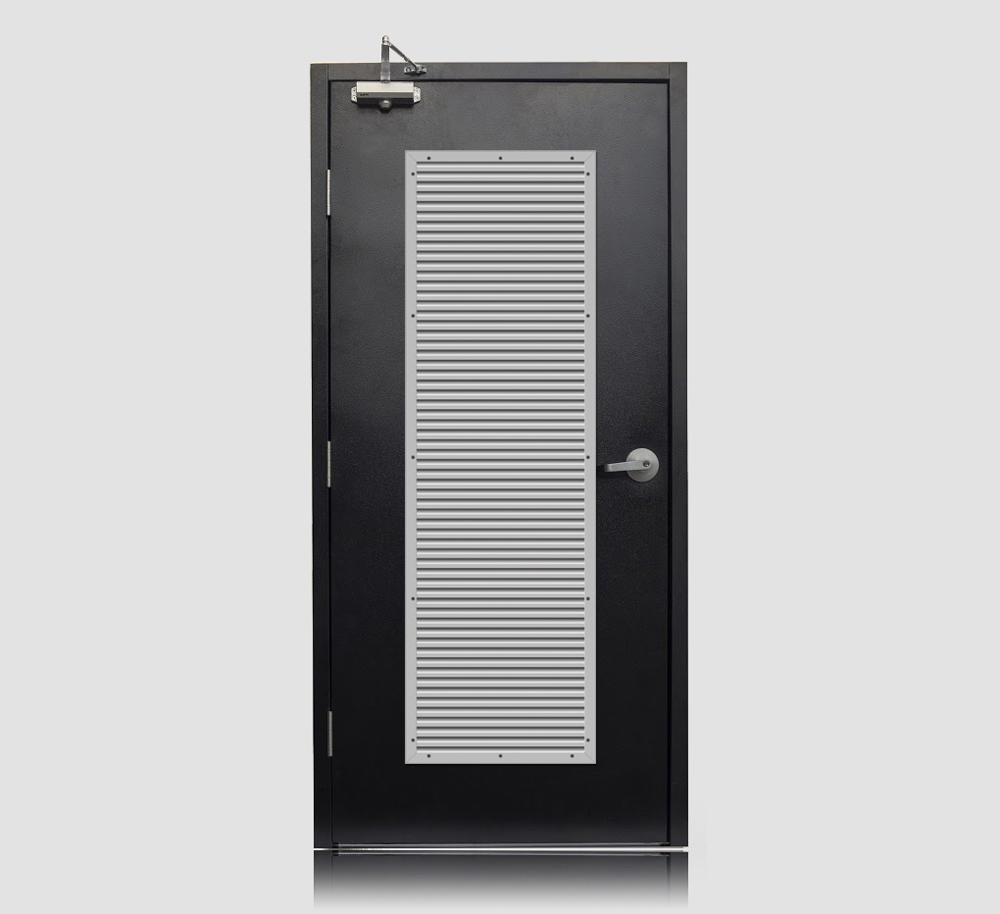

LV305x1524
LV203x1524

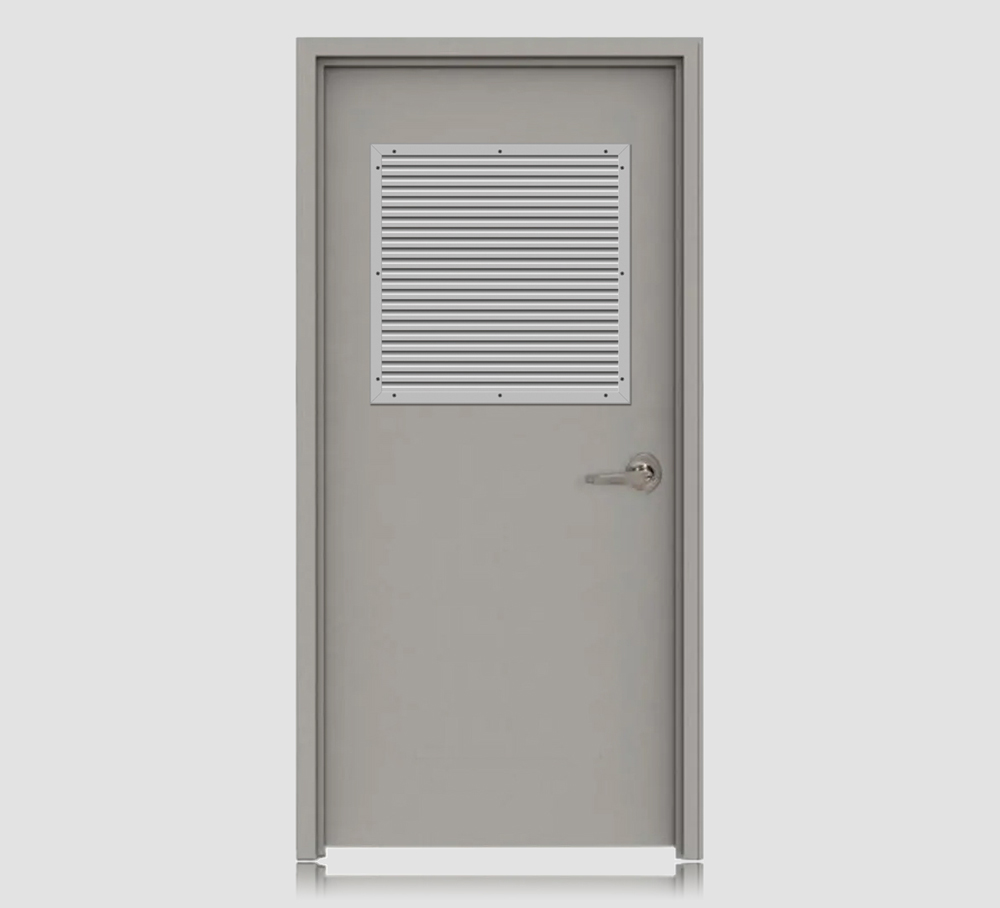

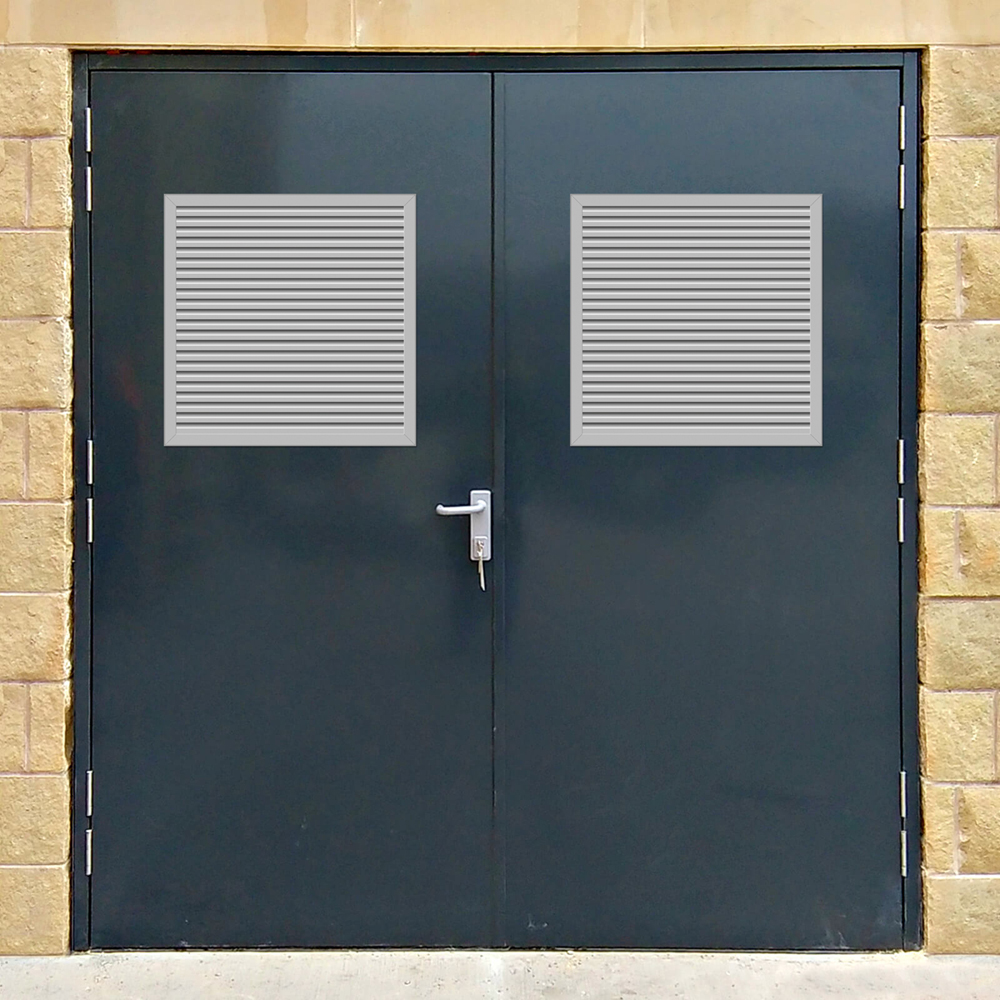

LV305x305
LV457x457
LV587x587
LV610x610
VARY Primer Surface & COLOR OPTIONS
