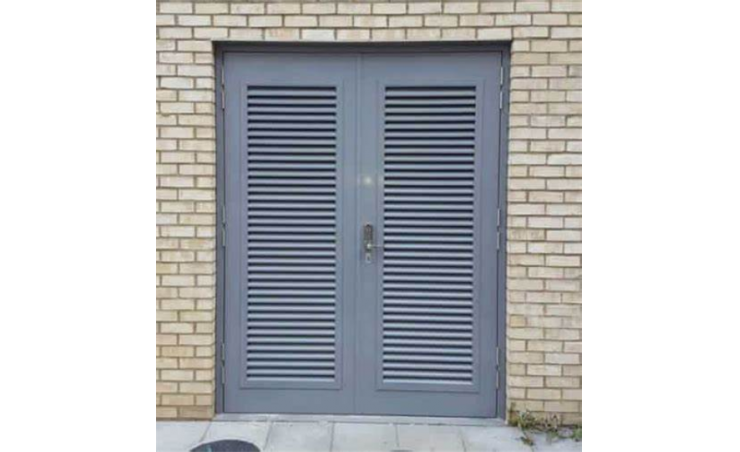

NAME - Door Louver Panel
COMPONENT - Internal Frame & External Louver
MATERIAL - Galvanized Steel Plate

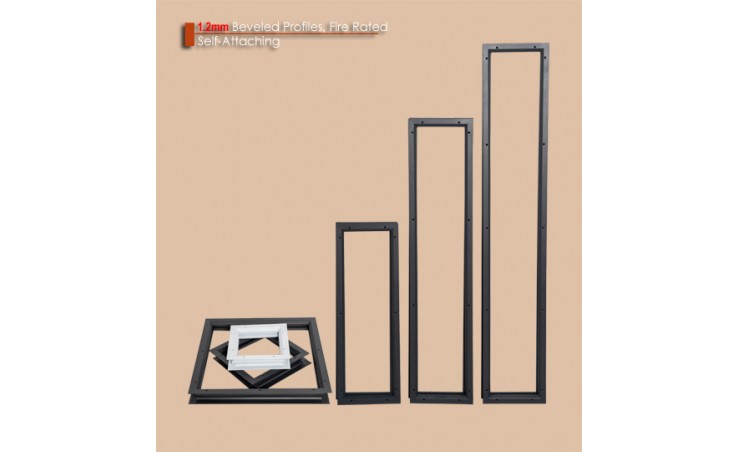

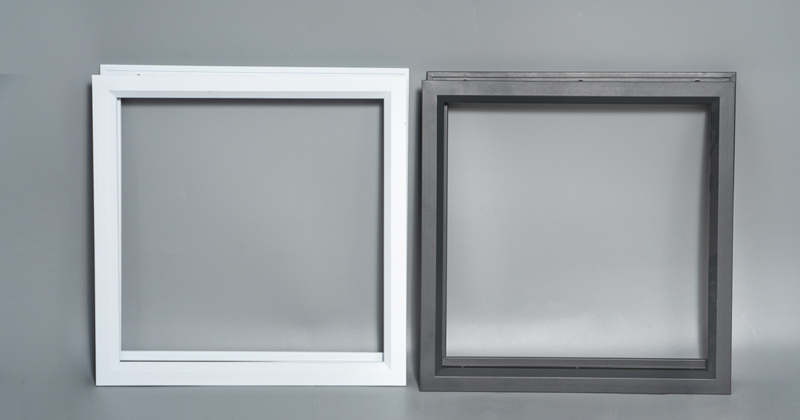

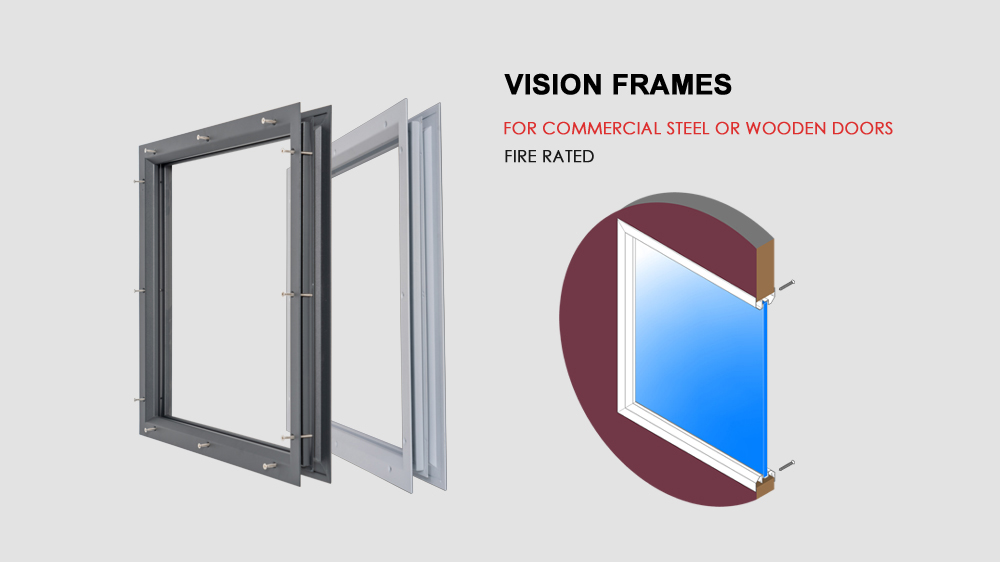

Name - Vision Lite Frames / Glass Light Kits
Component - Internal Frame & External Frame
Specification:
Material - Zinc Plated Steel Plate, 1.2mm thick
Primary Finish - Powder Coating

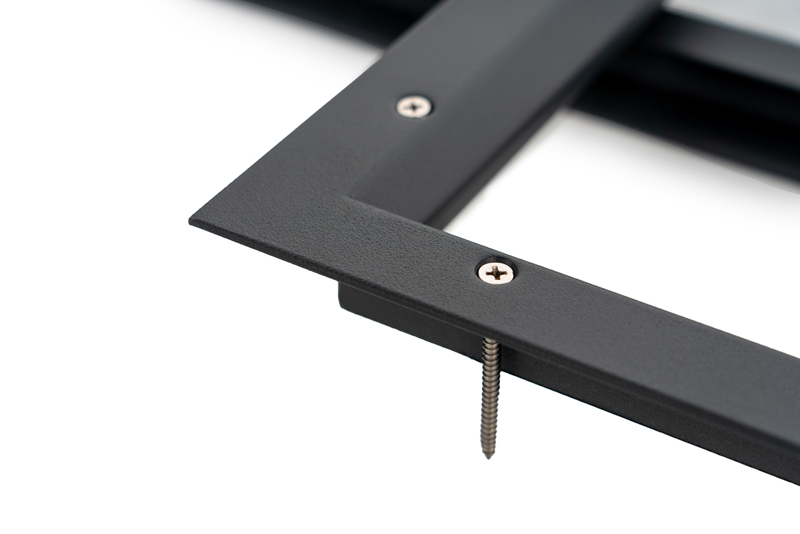

Installation - Self-attaching, Screwed
| Model |
Frame Overall |
Door Aperture Cutout ( Size A x B ) |
*Door Leaf vs Glass T. ( Suggested ) |
Glass Size ( Suggested ) |
Drawing |
| VP - 204 x 204 |
225 x 225 mm |
204 x 204 mm |

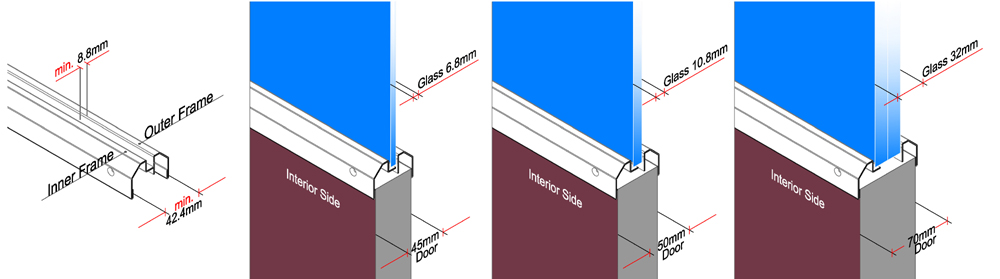

45 mm - 6.8 mm 50 mm - 10.8 mm 75 mm - 2 x 32 mm
* Door Leaf = Size C
|
175 x 175 mm |
Download |
| VP - 254 x 254 |
275 x 275 mm |
254 x 254 mm |
225 x 225 mm |
Download | |
| VP - 306 x 306 |
327 x 327 mm |
306 x 306 mm |
277 x 277 mm |
Download | |
| VP - 457 x 457 |
478 x 478 mm |
457 x 457 mm |
428 x 428 mm |
Download | |
| VP - 487 x 487 |
508 x 508 mm |
487 x 487 mm |
458 x 458 mm |
Download | |
| VP - 509 x 509 |
530 x 530 mm |
509 x 509 mm |
480 x 480 mm |
Download | |
| VP - 610 x 610 |
631 x 631 mm |
610 x 610 mm |
582 x 582 mm |
Download | |
| VP - 153 x 763 |
174 x 784 mm |
153 x 763 mm |
124 x 734 mm |
Download | |
| VP - 182 x 792 |
203 x 813 mm |
182 x 792 mm |
153 x 763 mm |
Download | |
| VP - 204 x 509 |
225 x 530 mm |
204 x 509 mm |
175 x 480 mm |
Download | |
| VP - 204 x 763 |
225 x 784 mm |
204 x 763 mm |
175 x 724 mm |
Download | |
| VP - 204 x 1068 |
225 x 1089 mm |
204 x 1068 mm |
175 x 1039 mm |
Download | |
| VP - 204 x 1525 |
225 x 1546 mm |
204 x 1525 mm |
175 x 1496 mm |
Download | |
| VP - 233 x 436 |
254 x 457 mm |
233 x 436 mm |
204 x 407 mm |
Download | |
| VP - 254 x 559 |
275 x 580 mm |
254 x 559 mm |
225 x 530 mm |
Download | |
| VP - 254 x 762 |
275 x 783 mm |
254 x 762 mm |
225 x 733 mm |
Download | |
| VP - 254 x 1219 |
275 x 1240 mm |
254 x 1219 mm |
225 x 1190 mm |
Download | |
| VP - 254 x 1524 |
275 x 1545 mm |
254 x 1524 mm |
225 x 1495 mm |
Download | |
| VP - 479 x 779 |
500 x 800 mm |
479 x 779 mm |
450 x 750 mm |
Download | |
| VP - 479 x 1679 |
500 x 1700 mm |
479 x 1679 mm |
450 x 1650 mm |
Download | |
| VP - 529 x 779 |
550 x 800 mm |
529 x 779 mm |
500 x 750 mm |
Download | |
| VP - 529 x 1679 |
550 x 1700 mm |
529 x 1679 mm |
500 x 1650 mm |
Download | |
| VP - 600 x 750 |
621 x 771 mm |
600 x 750 mm |
571 x 721 mm |
Download | |
| VP - 629 x 779 |
650 x 800 mm |
629 x 779 mm |
600 x 750 mm |
Download | |
| VP - 629 x 1679 |
650 x 1700 mm |
629 x 1679 mm |
600 x 1650 mm |
Download |
VARY Primer Surface & COLOR OPTIONS
EVERPINE is a professional manufacturer of metal products, special in:Steel Louvers and Vision Lite Frames Applied on Commercial Steel Doors
