Circle Vision Panels / Vision Glazed Panels

NAME - Door Louver Panel

COMPONENT - Internal Frame & External Louver

MATERIAL - Galvanized Steel Plate

Online message
Products detail

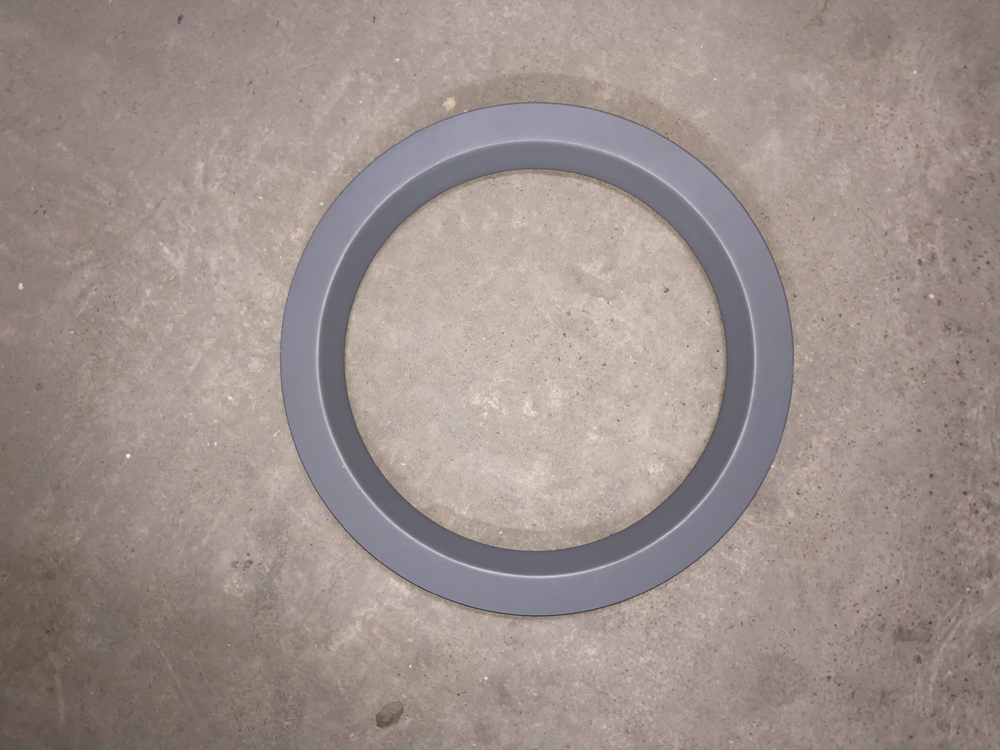

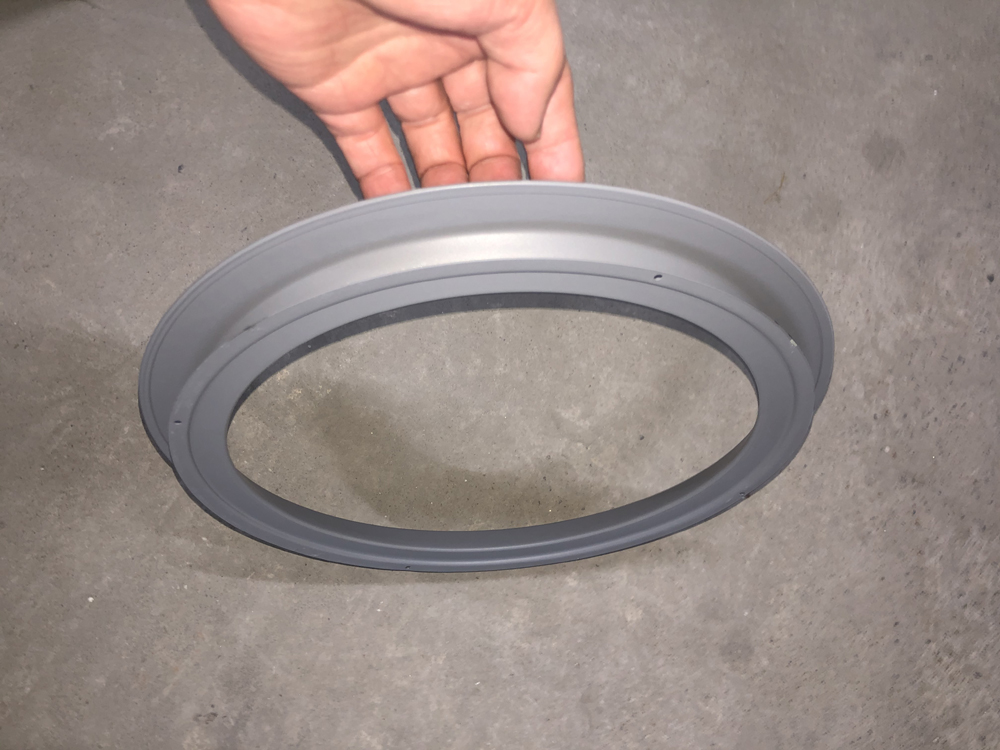

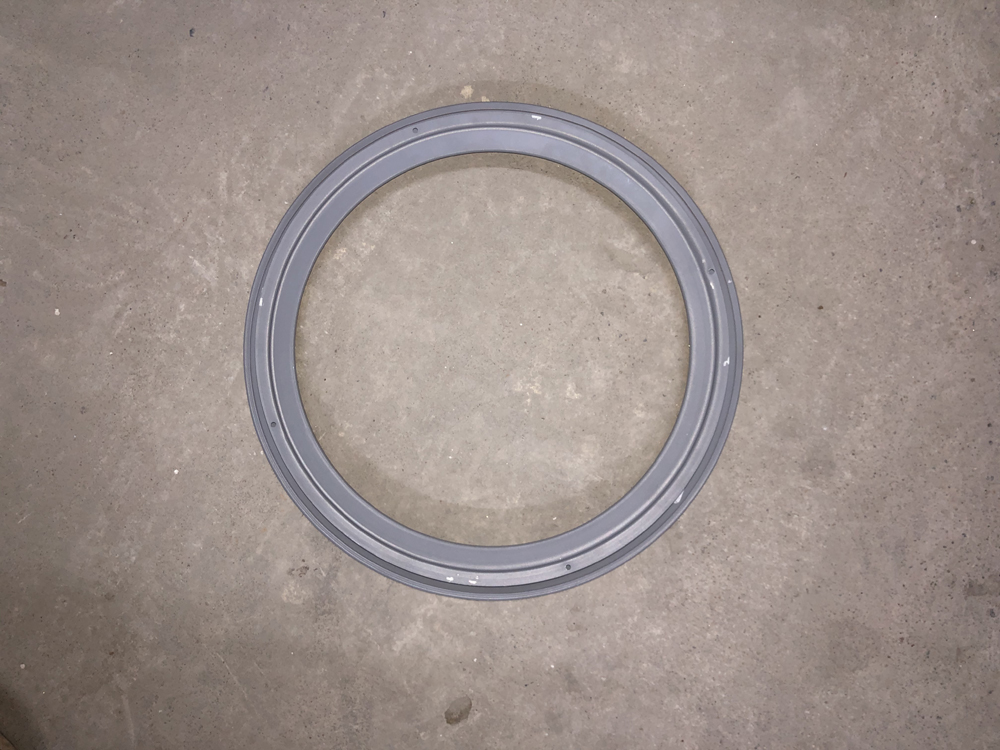

Name   -  Door Circular Vision Panel / Glass Light Frame

Component -   Internal Frame & External Frame

Specification:

              Material   -  Zinc Plated Steel Plate

               Frame Guage   -  1.0mm thick

              Primary Finish   -  Powder Coating

               Installation   -  Self-attaching, Screwed


Model
 Frame Overall

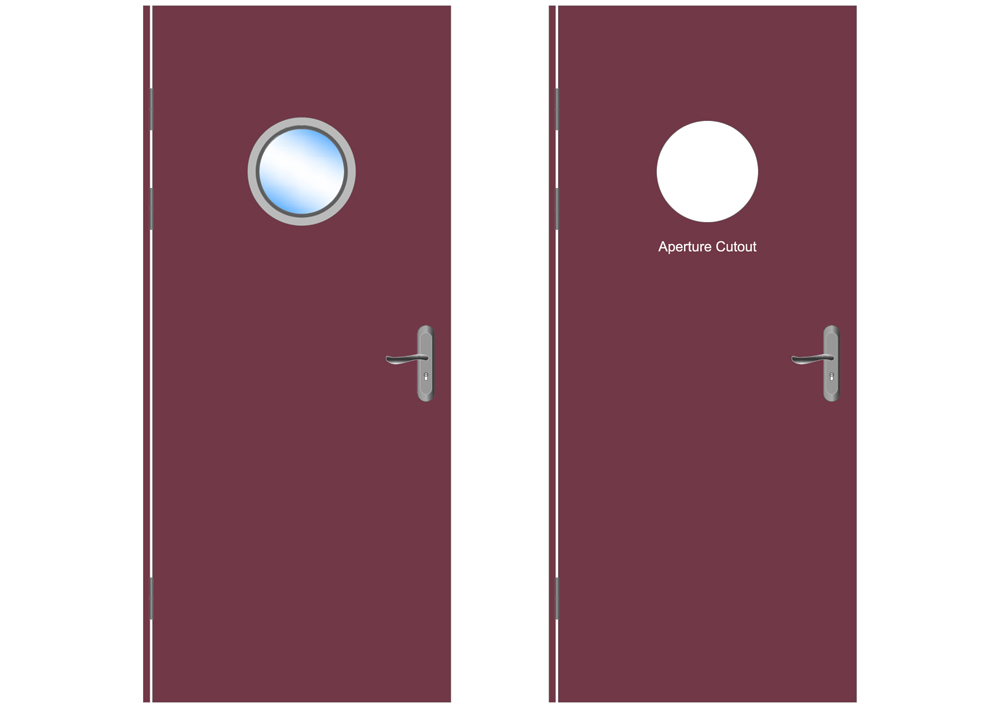

 Door Aperture Cutout

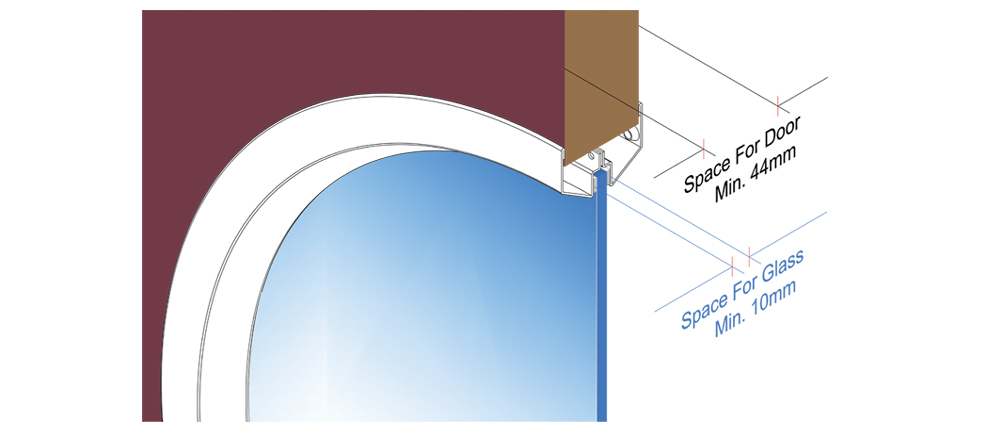

Door  T. vs Glass T.

( Suggested )

Glass Size

( Suggested )

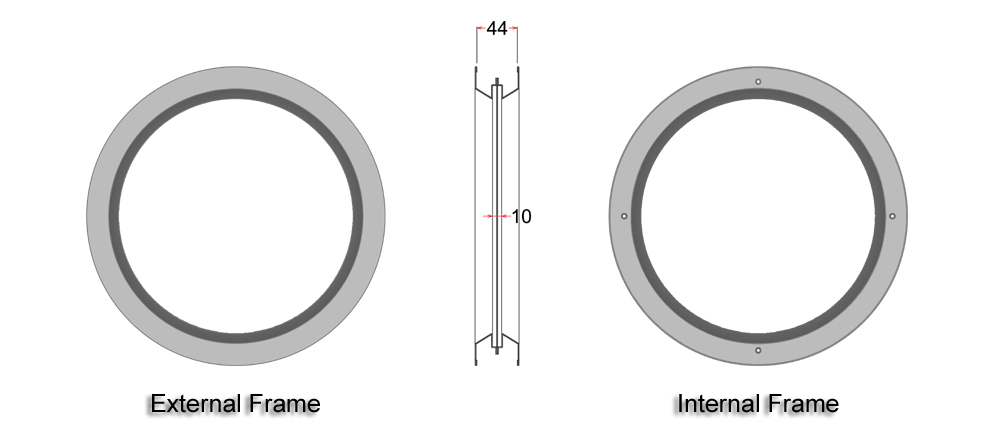

 Drawing

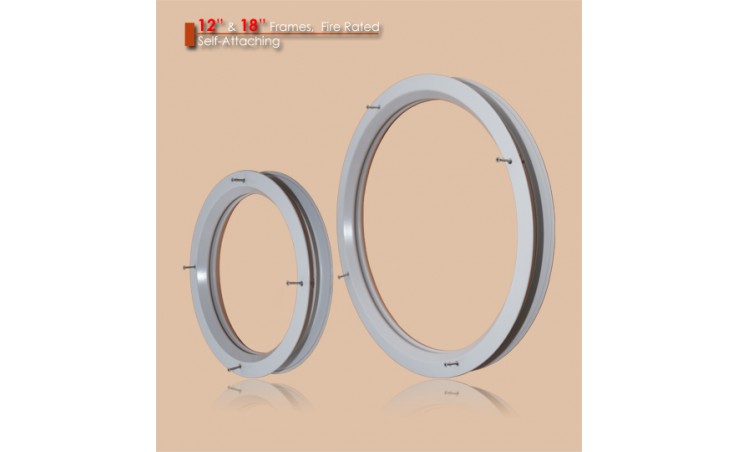

VP - C305 (12")
 Φ 326 mm
 Φ 305 mm

44 mm - 6.8 mm

50 mm - 10.8 mm

 Φ 280 mm
 Download
VP - C457 (18")
 Φ 478 mm
 Φ 457 mm
 Φ 432 mm
 Download





















VARY Primer Surface & COLOR OPTIONS
