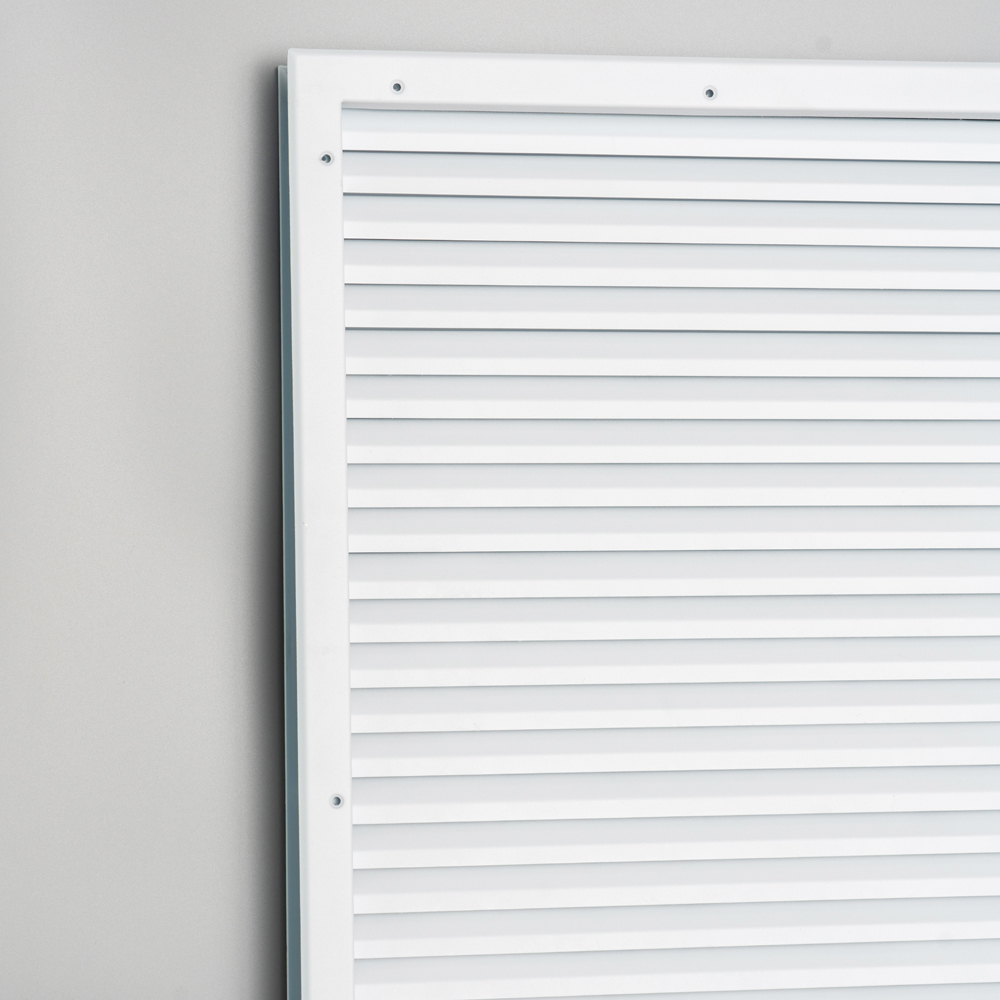

Name   -  "V" Door Louver Panel

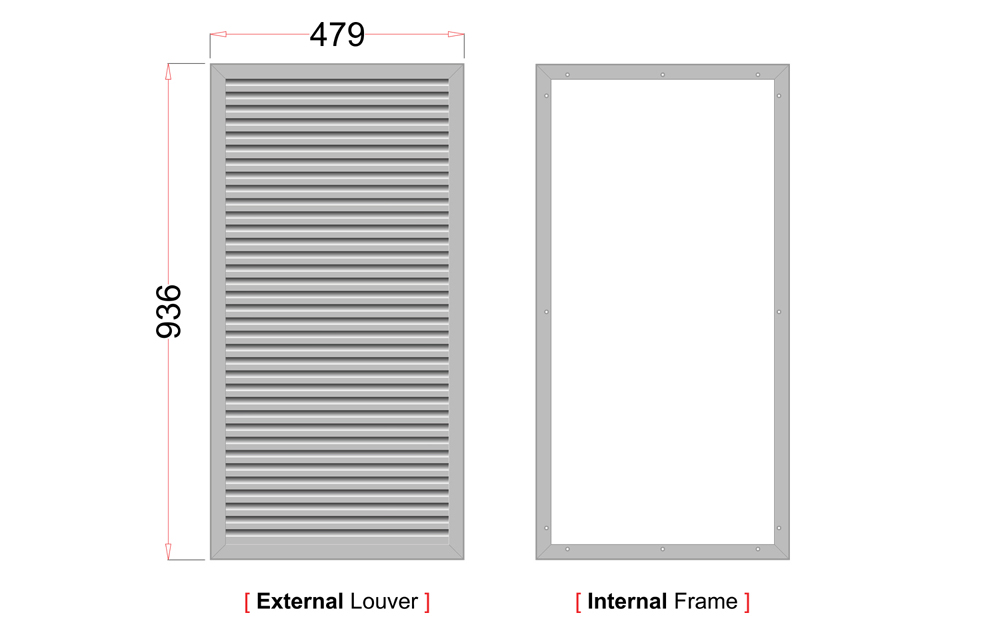

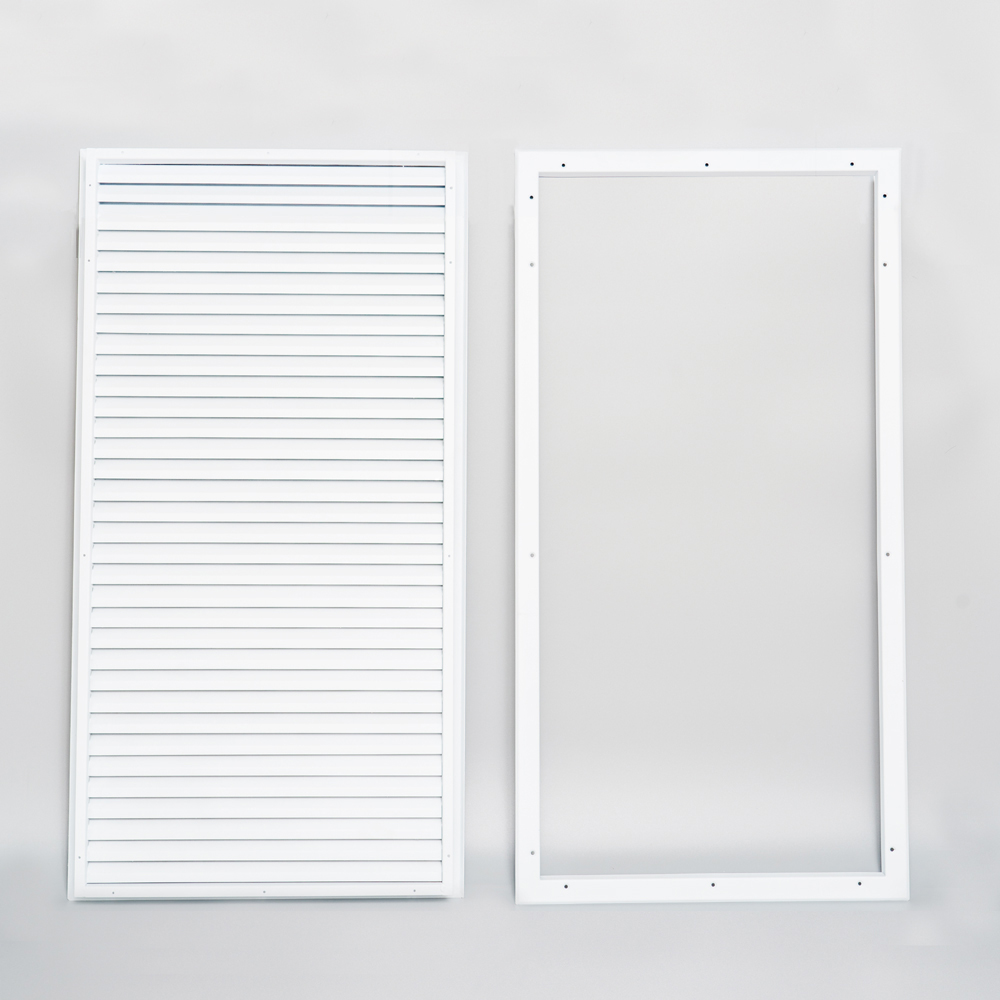

Component   -   Internal Frame & External Louver

Specification:

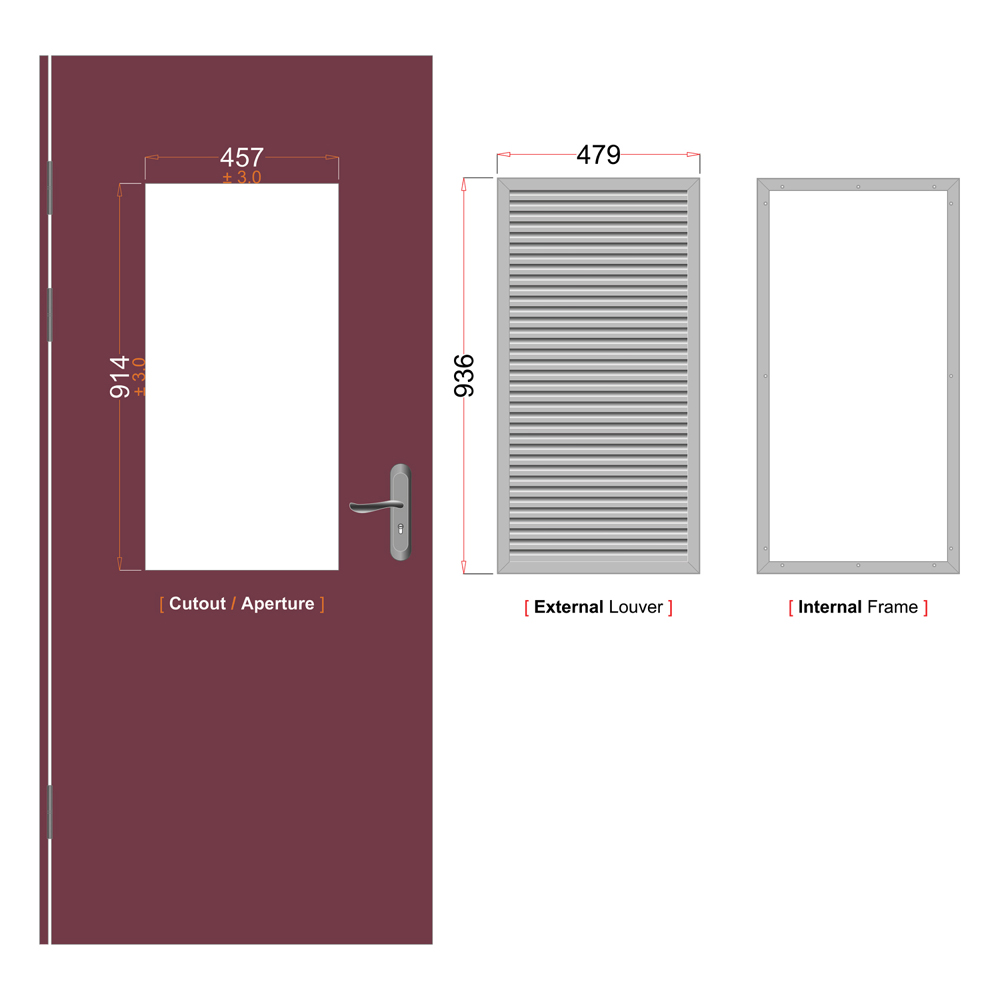

               Panel Overall Size   -  479*936mm

               Door Aperture Cutout Size   -  457*914mm (±3.0mm)

               Material   -  Galvanized Steel Plate

               Frame Guage   -  1.2mm thick

               Blade Guage   -  0.75mm thick, Inverted V Shape, 1" Spacing

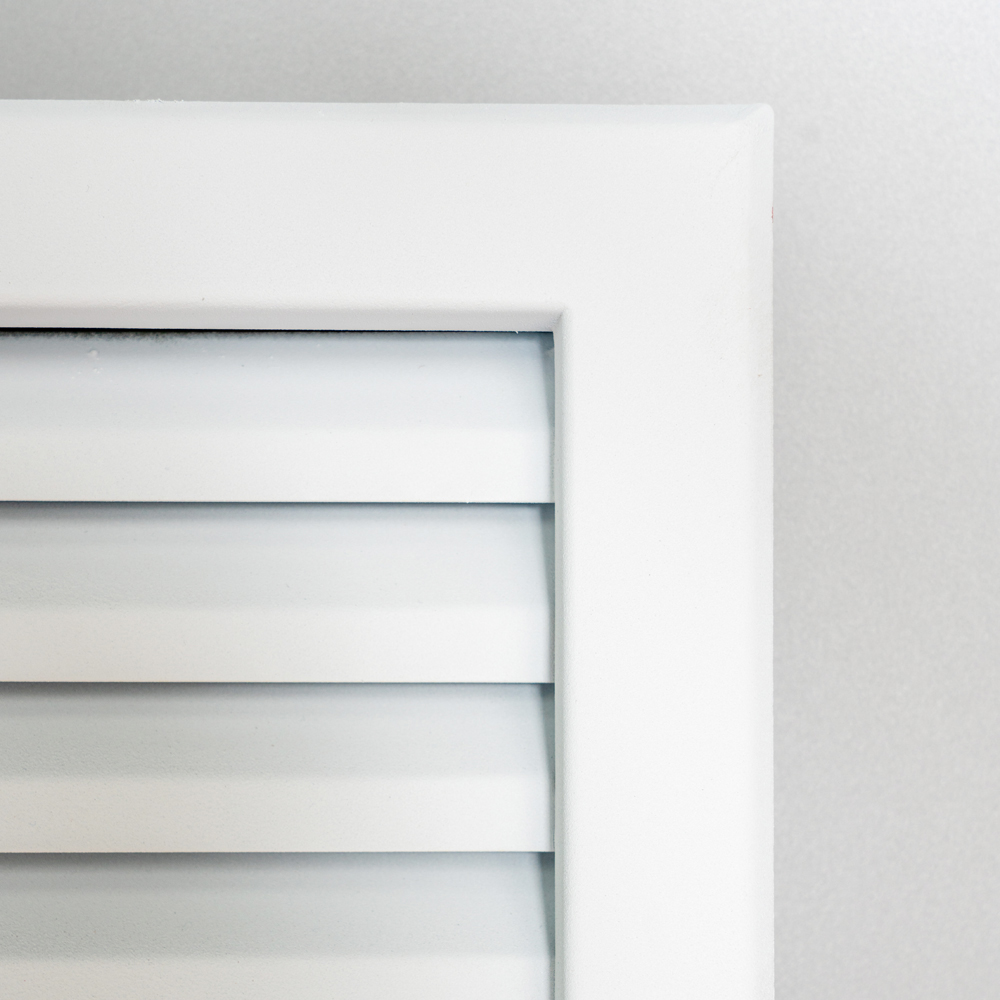

               Primary Finish   -  Powder Coating

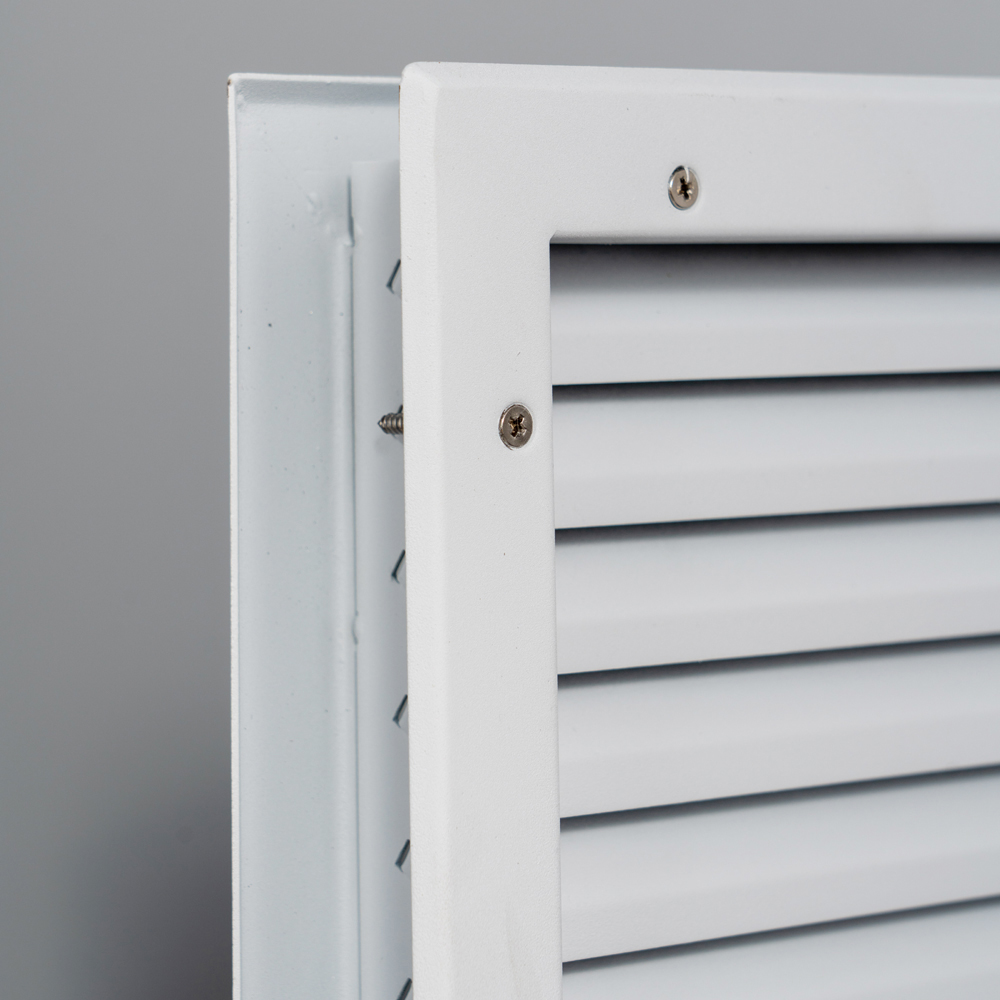

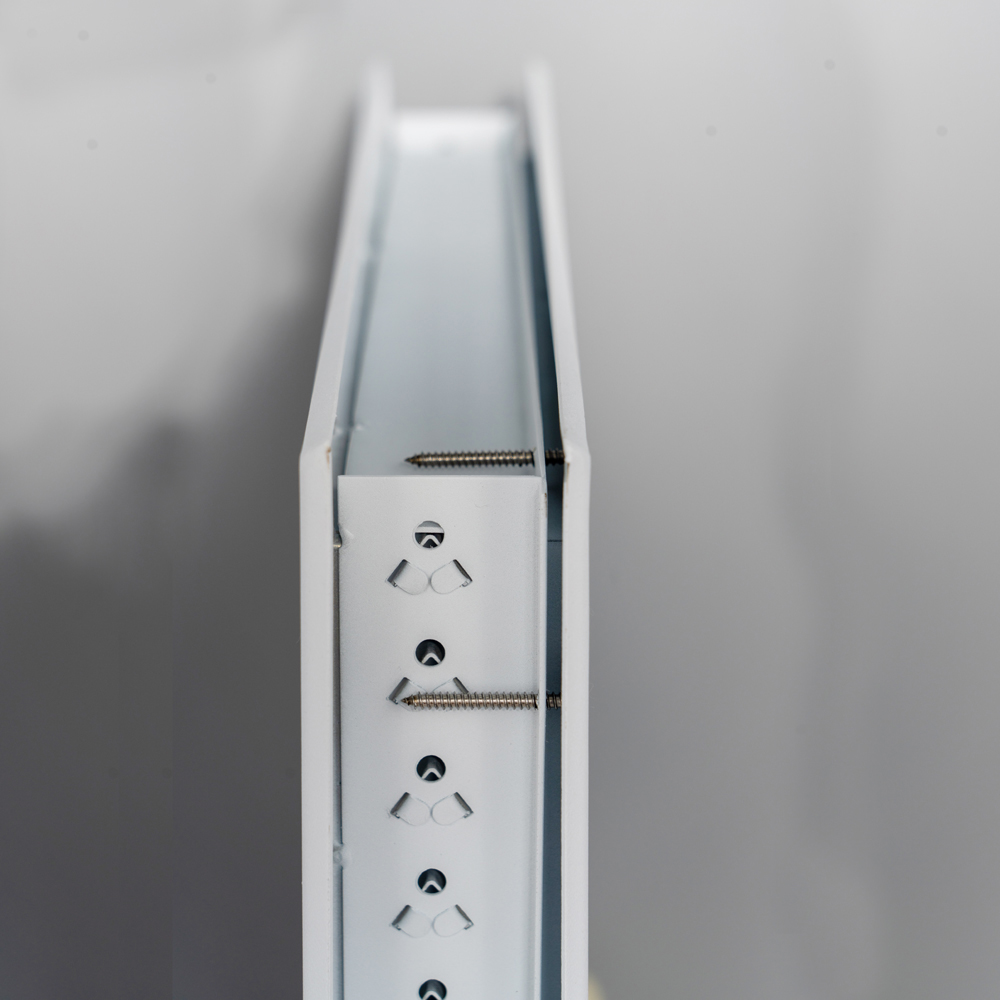

               Installation   -  Self-attaching, Screwed

Features:

               ※ Non-Vision

               ※ 50% Air Flow

               ※ Easy & Fast Installation

               ※ Welded Structure, Prying Resistance

               ※ Convenient Maintenance

               ※ Vary Color Options

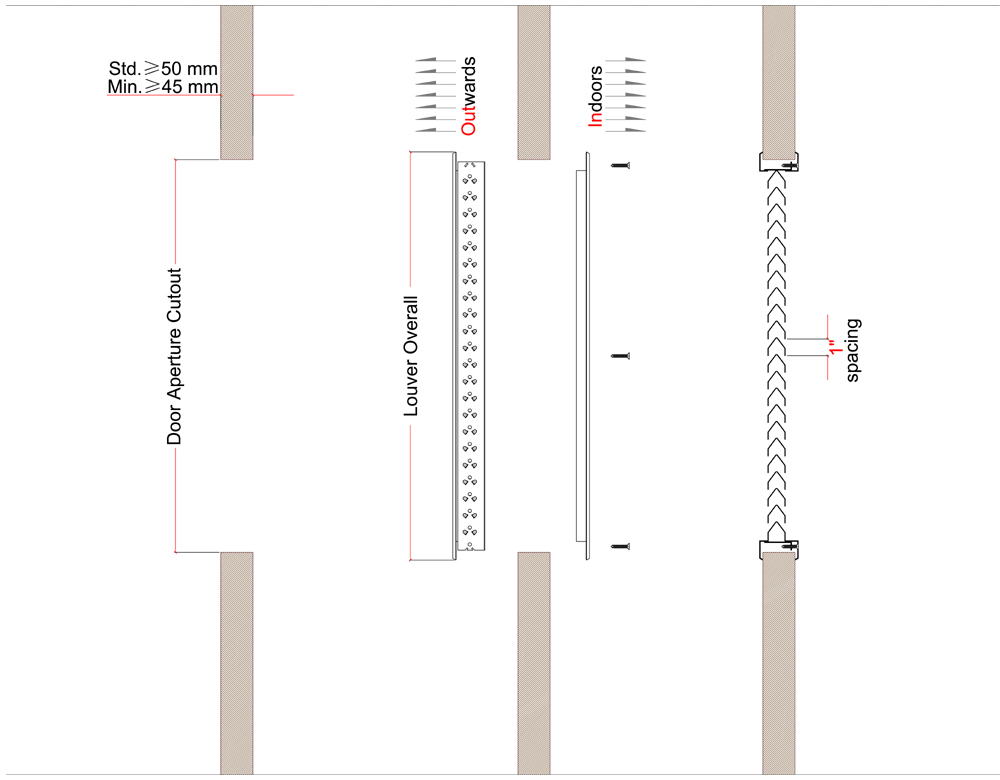

Before Installation:

               ※ Door Leaf Required   -  ≥50mm (Standard);  If thinner, please advise specially;

               ※ Door Aperture Required   -  Standard shape, Tolerance ±3.0mm

Application/Usage For:

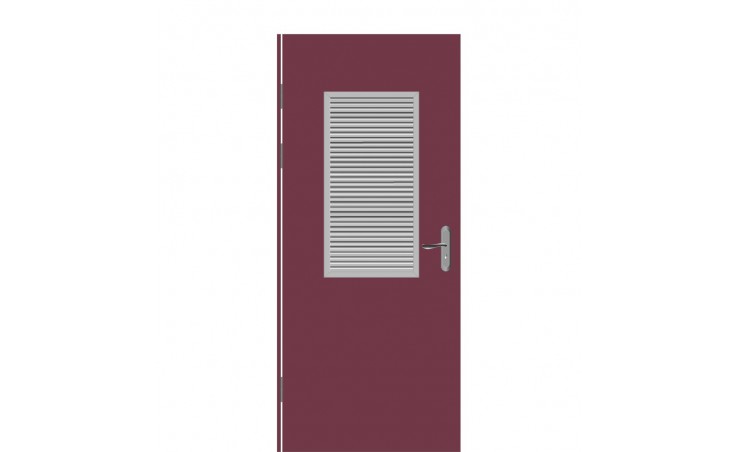

               Louvered Doors, Fire Exit Doors, Warehouse Doors, Toilet Doors, Commercial Security Doors, Power Distribution House/Room Doors, Hollow Metal Doors

VARY Primer Surface &  COLOR OPTIONS
