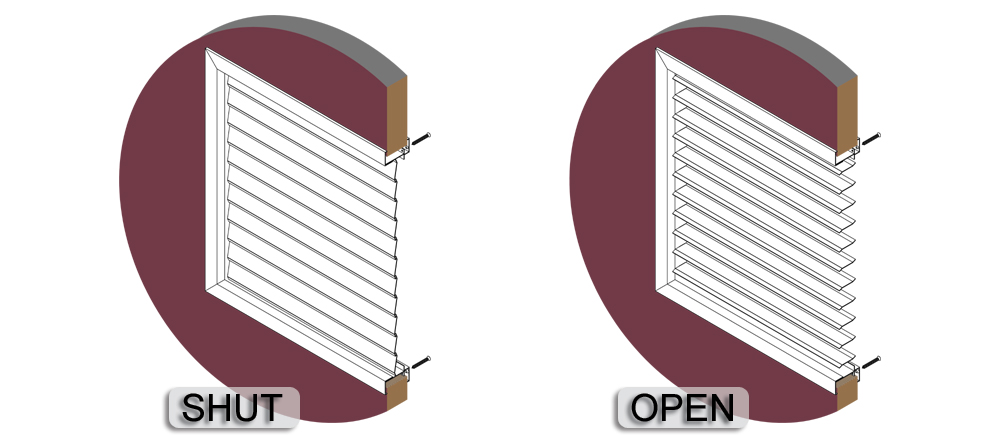

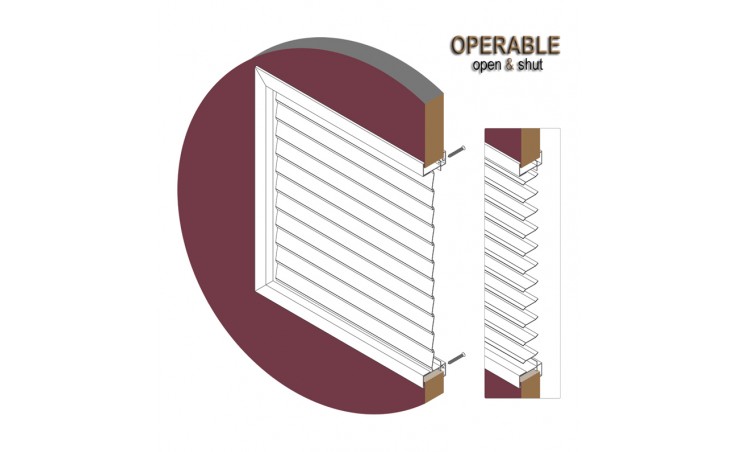

Open & Shut Louver Panel

NAME - Door Louver Panel

COMPONENT - Internal Frame & External Louver

MATERIAL - Galvanized Steel Plate

Online message
Products detail




Name   -  Open & Shut Louver Panel

Component   -   Internal Frame & External Louver

Specification:

               Material   -  Galvanized Steel Plate

               Frame Guage   -  1.2mm thick

               Blade Guage   -  1.0mm thick

               Primary Finish   -  Powder Coating

               Installation - Self Attaching by Screws



Model

Louver Panel Overall

Door Aperture Cutout

( Size A x B )

Door Leaf THK

( Size C )

 Drawing
LV - J305 x 305
 333 x 333 mm
 305 x 305 mm
 50mm*
 Download
LV - J457 x 457
 485 x 485 mm
 457 x 457 mm
 50mm*
 Download
LV - J587 x 587
 615 x 615 mm
 587 x 587 mm
 50mm*
 Download
LV - J610 x 610
 638 x 638 mm
 610 x 610 mm
 50mm*
 Download

* Door Leaf = 50mm (Standard);  If thinner, please advise specially;

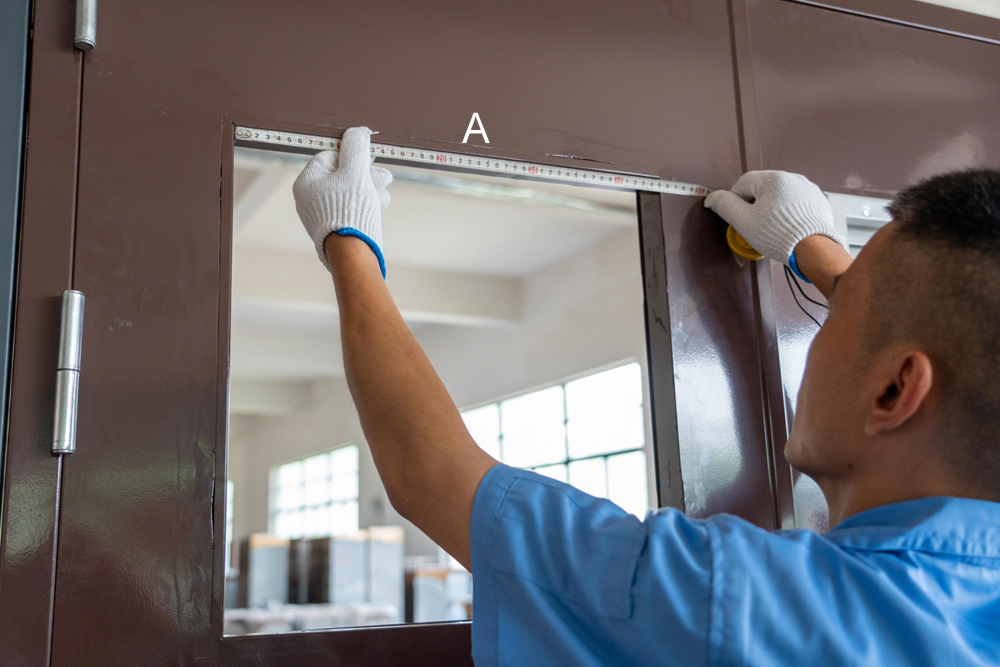

Size A: Door Aperture Cutout WIDTH

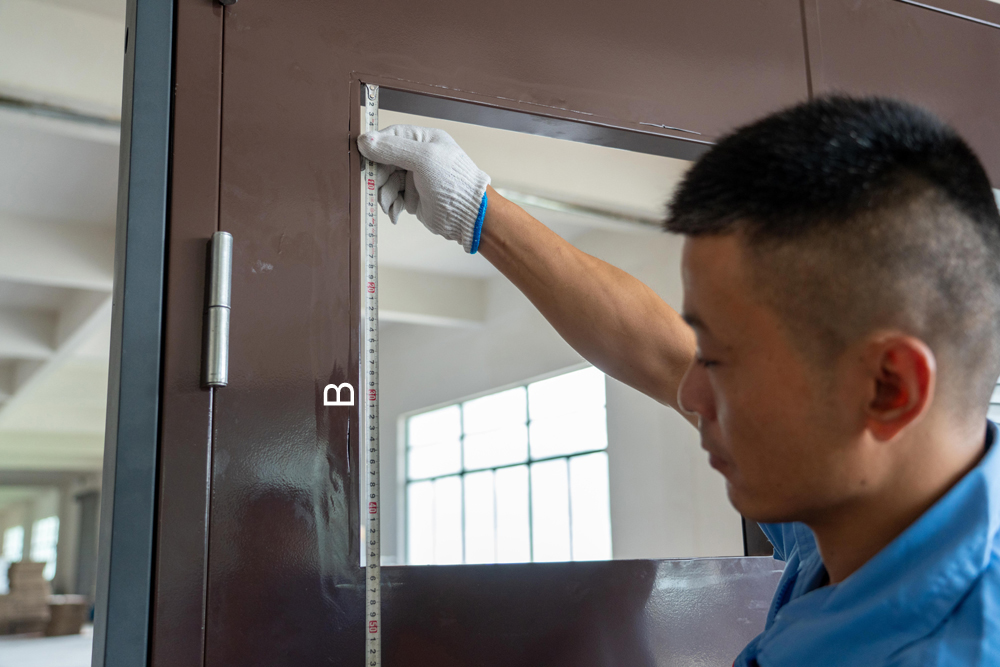

Size B: Door Aperture Cutout HEIGHT

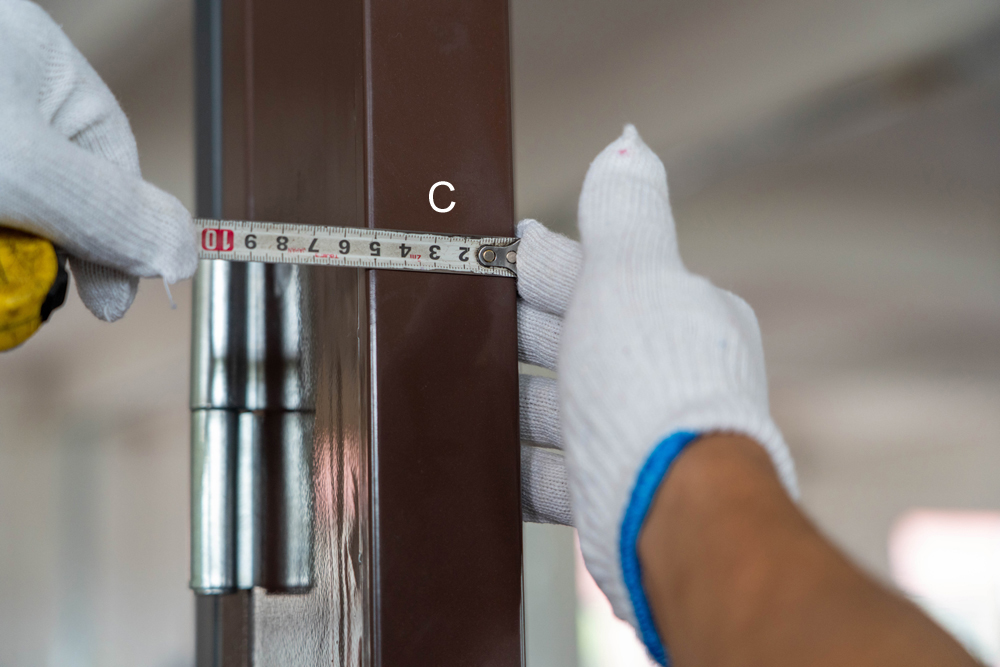

Size C: Door Leaf THICKNESS, Standard=50mm












VARY Primer Surface &  COLOR OPTIONS
